5–6 Maintenance and Service Guide
Removal and Replacement Procedures

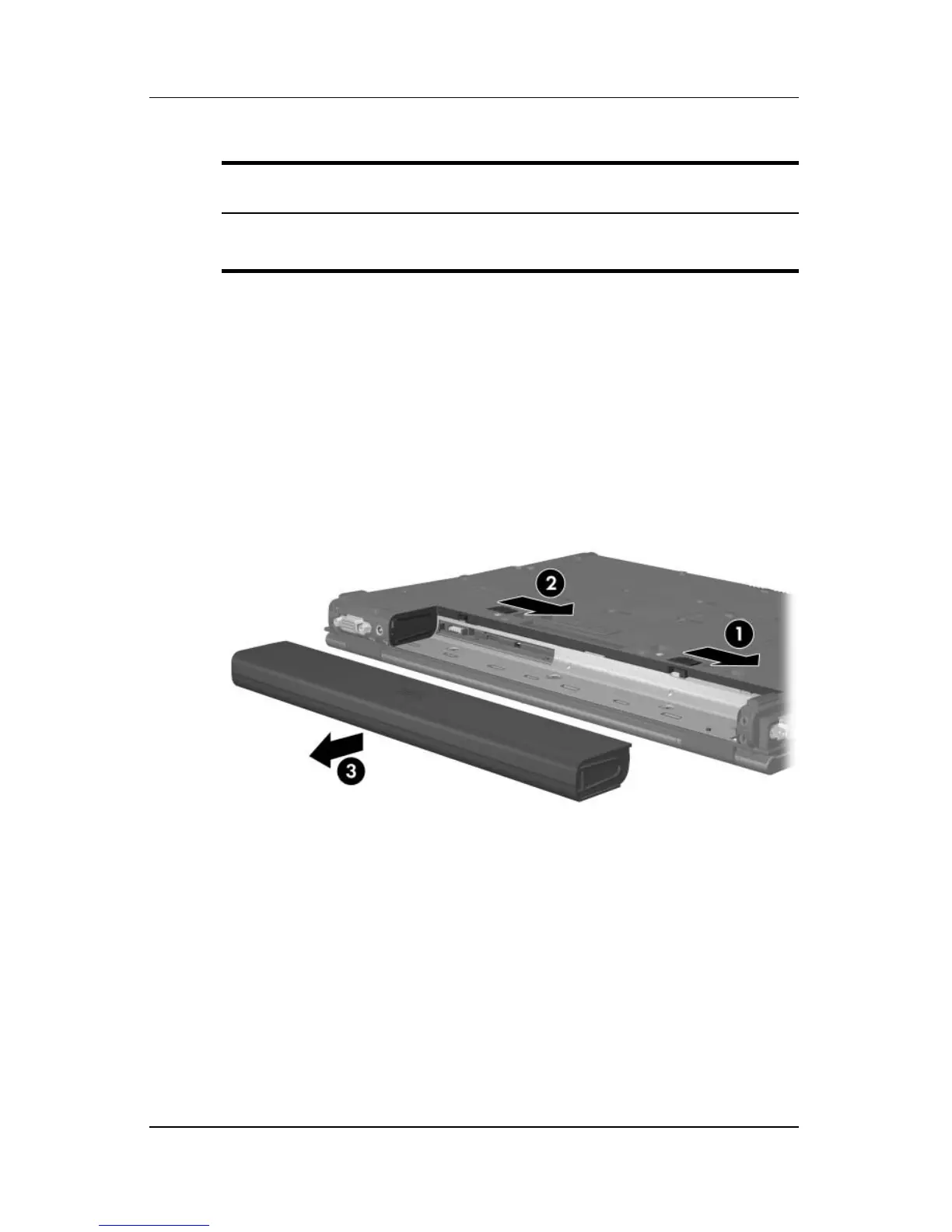

4. Remove the battery by following these steps:
a. Turn the computer upside down with the rear panel
toward you.
b. Slide the battery release latch on the right 1 and then the
battery release latch on the left 2 to release the battery.
c. Slide the battery 3 straight back and remove it.
Removing the Battery
Reverse the above procedure to install the battery.
Battery Spare Part Number Information
6-cell, 4.8-AH
6-cell, 4.0-AH
372771-001
417528-001
