Removal and Replacement Procedures
Maintenance and Service Guide 5–9
c. Turn the computer top side up with the right side facing
forward.
d. Insert a paper clip or similar thin metal rod into the
manual release hole on the front bezel of the optical
drive
1
(Figure 5-5). Press firmly.
e. Grasp the drive bezel and slide the drive out of the optical
drive bay
2
.

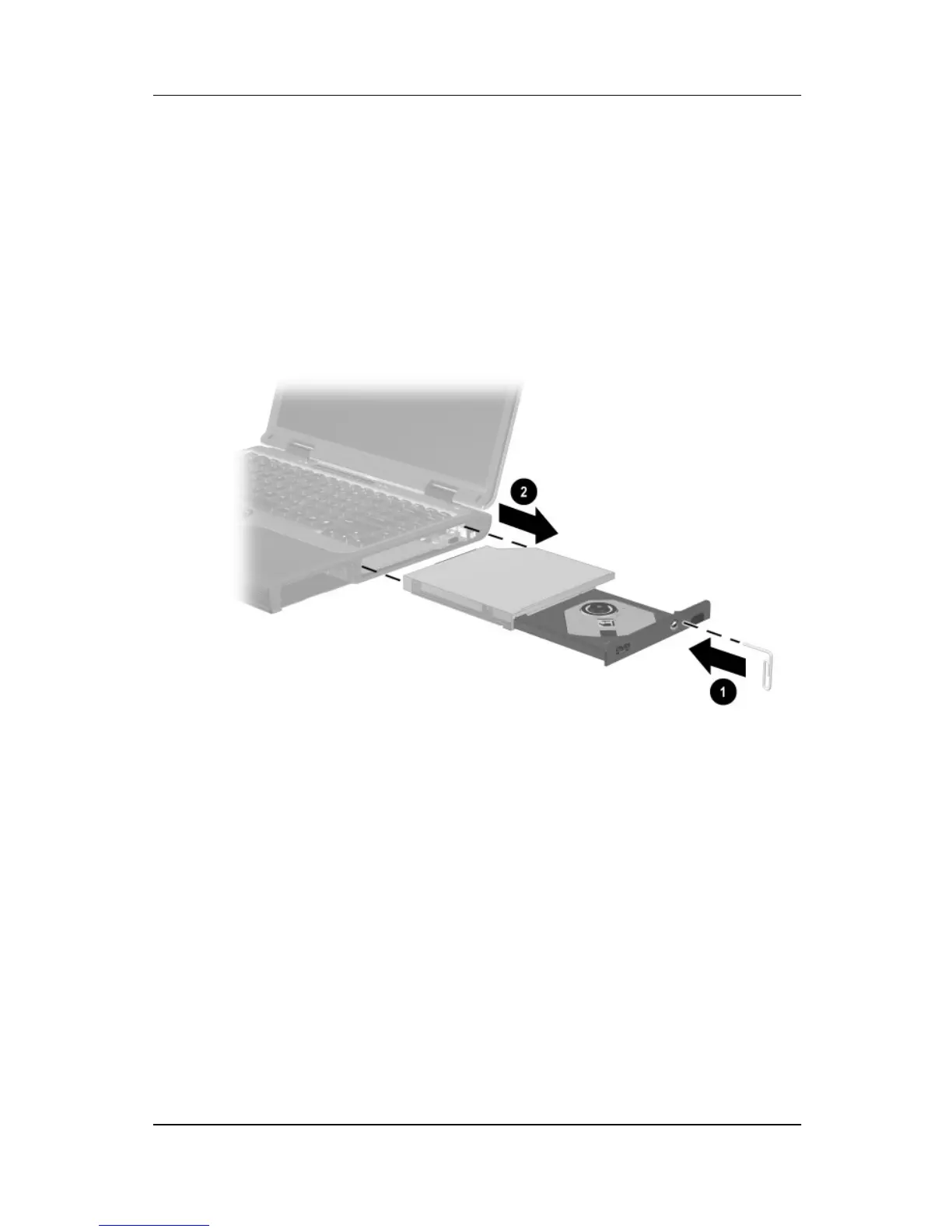

Figure 5-5. Removing an Optical Drive
Reverse the preceding procedures to install a optical drive.
