5–10 Maintenance and Service Guide
Removal and Replacement Procedures
6. Remove the hard drive by following these steps:
a. Turn the computer bottom side up with the right side
facing forward.
b. Remove the TM2.5 ×8.0 hard drive retention screw
1
(Figure 5-6).
c. Slide the hard drive forward
2
to unseat the hard drive
connector from the system board.

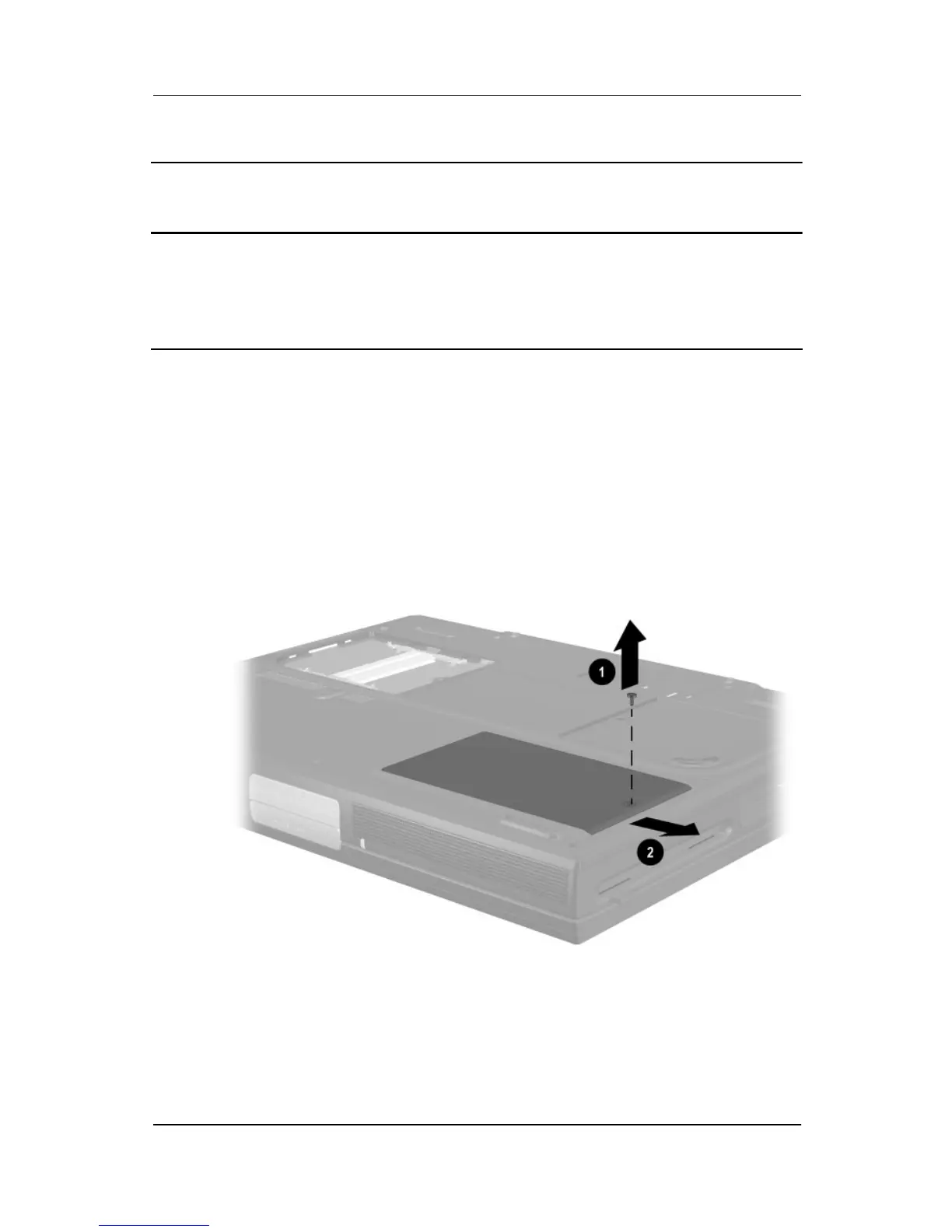

Figure 5-6. Removing the Hard Drive Screw
Hard Drives
Spare Part Number Information
60 GB
40 GB
30 GB
20 GB
303527-001
273491-001
192406-001
288291-001
