Removal and Replacement Procedures
Maintenance and Service Guide 5–27
6. Remove the display video cable
1
from the routing channel
in the heat spreader (Figure 5-21).
7. Lift the right side of the heat spreader until it rests at
an angle
2
.
8. Slide the heat spreader to the right at an angle
3
and remove
the heat spreader from the base enclosure.

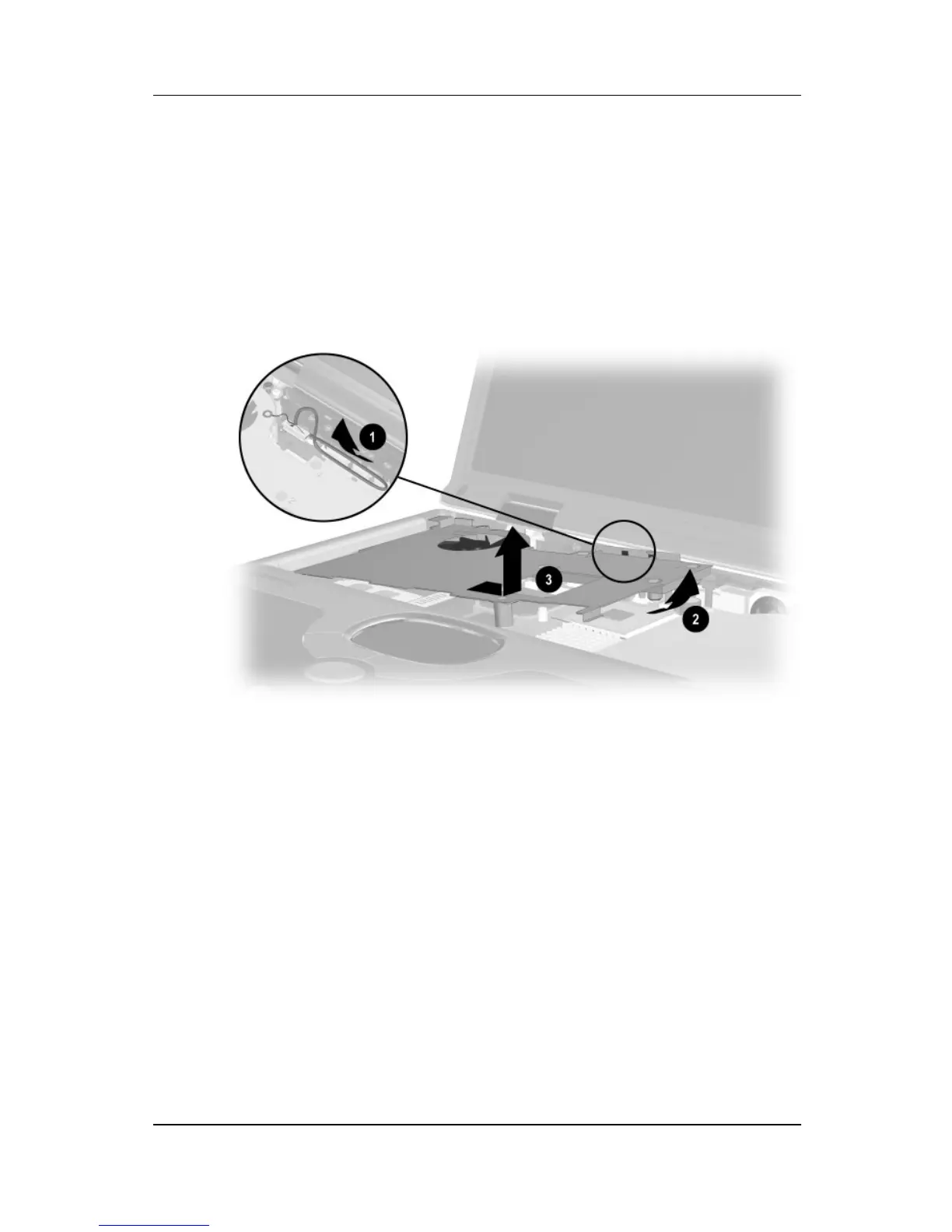

Figure 5-21. Removing the Heat Spreader
Reverse the preceding procedures to install the heat spreader.
