Removal and Replacement Procedures
Maintenance and Service Guide 5–31
4. Remove the TM2.5 × 5.0 screw
1
that secures the display
video ground cable to the heat spreader (Figure 5-23).
5. Disconnect the display video cable
2
from the system board.
6. Remove the display video cable from the routing channels in
the heat spreader and the top cover
3
.
7. Remove the TM2.5 × 5.0 screw
4
that secures the display
inverter ground cable to the heat spreader.
8. Disconnect the display inverter cable
5
from the system
board.

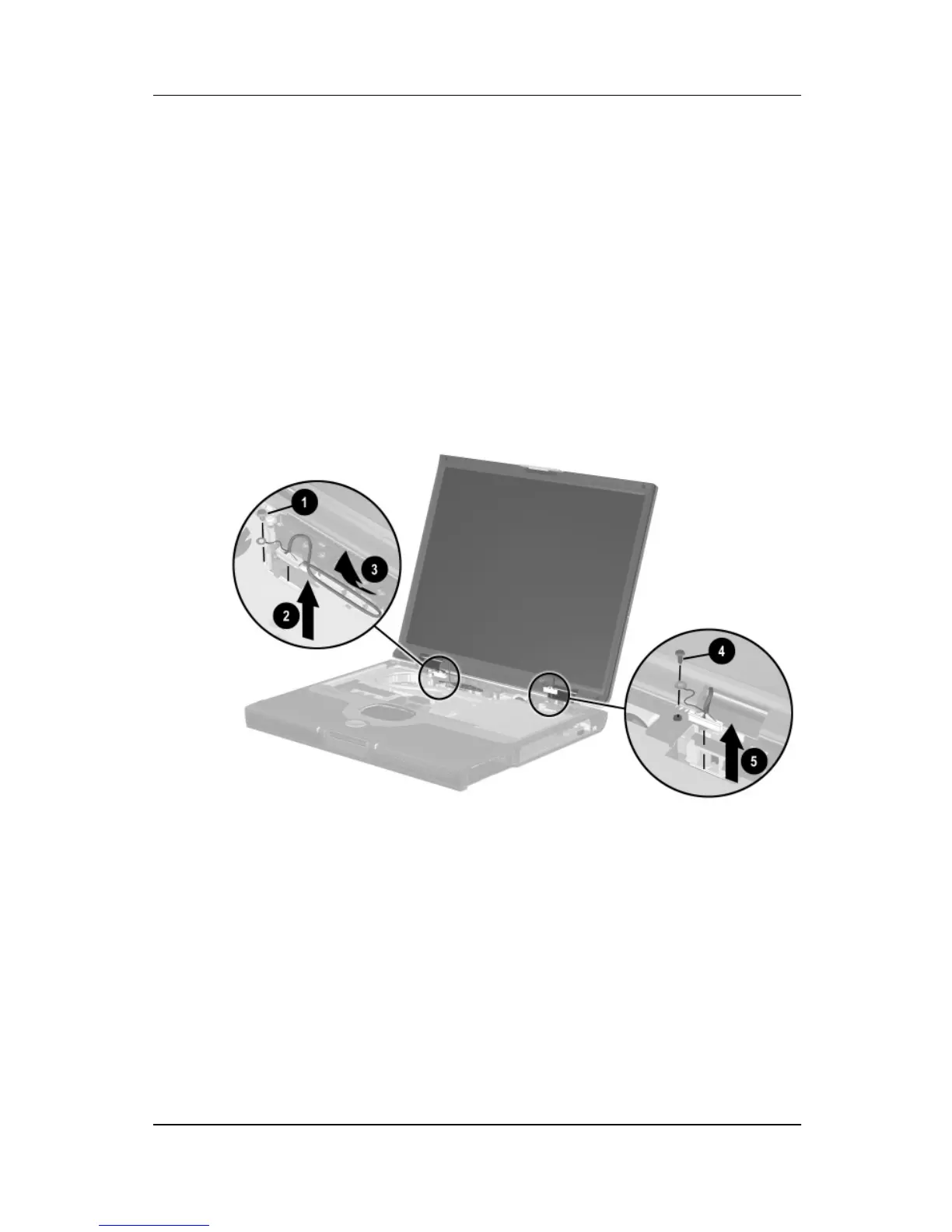

Figure 5-23. Removing the Display Screws and
Disconnecting the Display Cables
To Next Page
