5–36 Maintenance and Service Guide
Removal and Replacement Procedures
4. Remove the five TM2.5 × 8.0 screws
1
that secure the palm
rest to the base enclosure (Figure 5-27).
5. Remove the TM2.5 × 5.0 screw
2
that secures the palm rest
to the base enclosure in the battery bay.

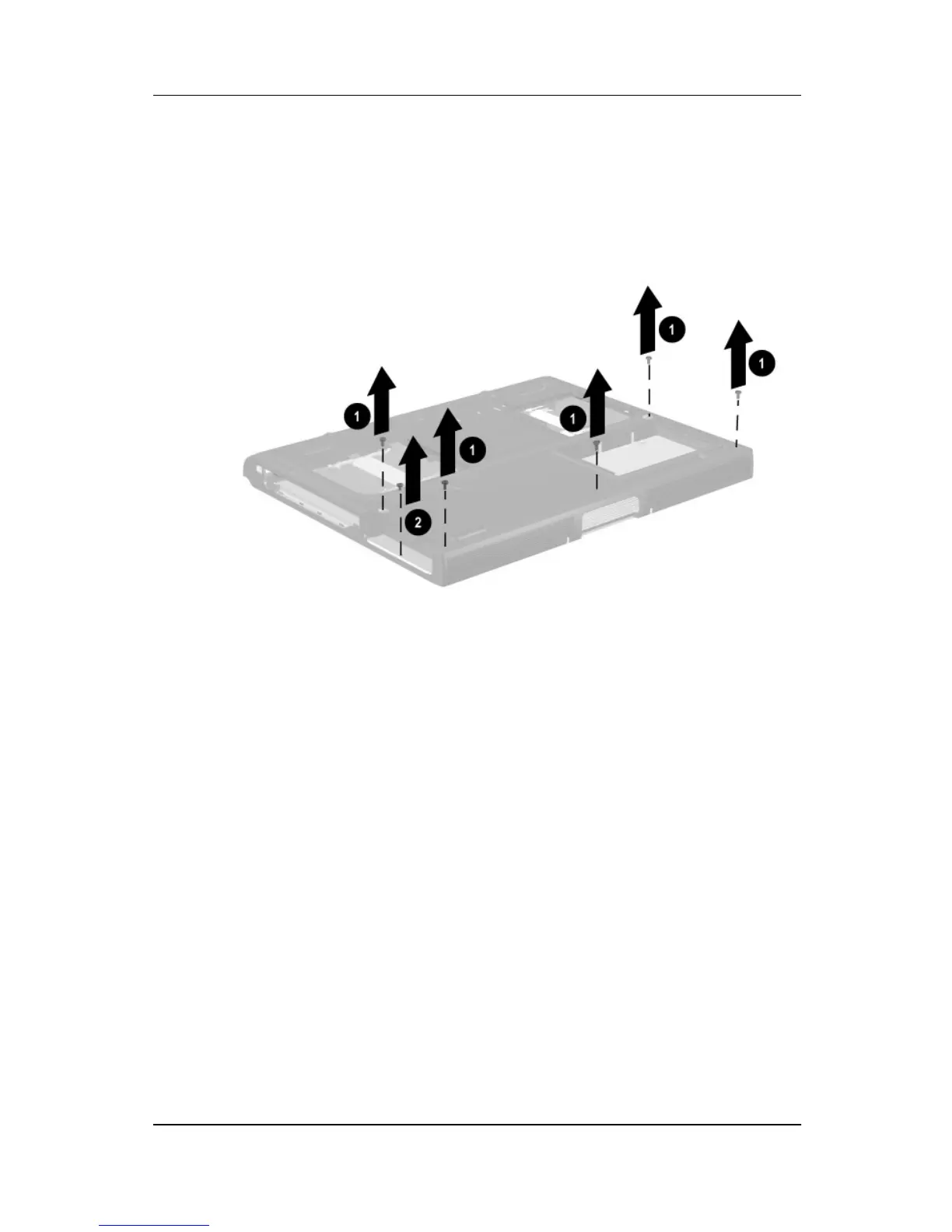

Figure 5-27. Removing the Palm Rest Screws
