Removal and Replacement Procedures
Maintenance and Service Guide 5–37
6. Turn the computer top side up with the front facing forward.
7. Open the computer.
8. Lift the front edge of the palm rest and swing it up and
back
1
until it rests on the top cover (Figure 5-28).
9. Release the ZIF connector to which the diskette drive cable
is attached
2
and disconnect the diskette drive cable
3
from
the system board.
10. Release the ZIF connector to which the system board-
to-TouchButton board cable is attached
4
and disconnect
the cable
5
from the TouchButton board.

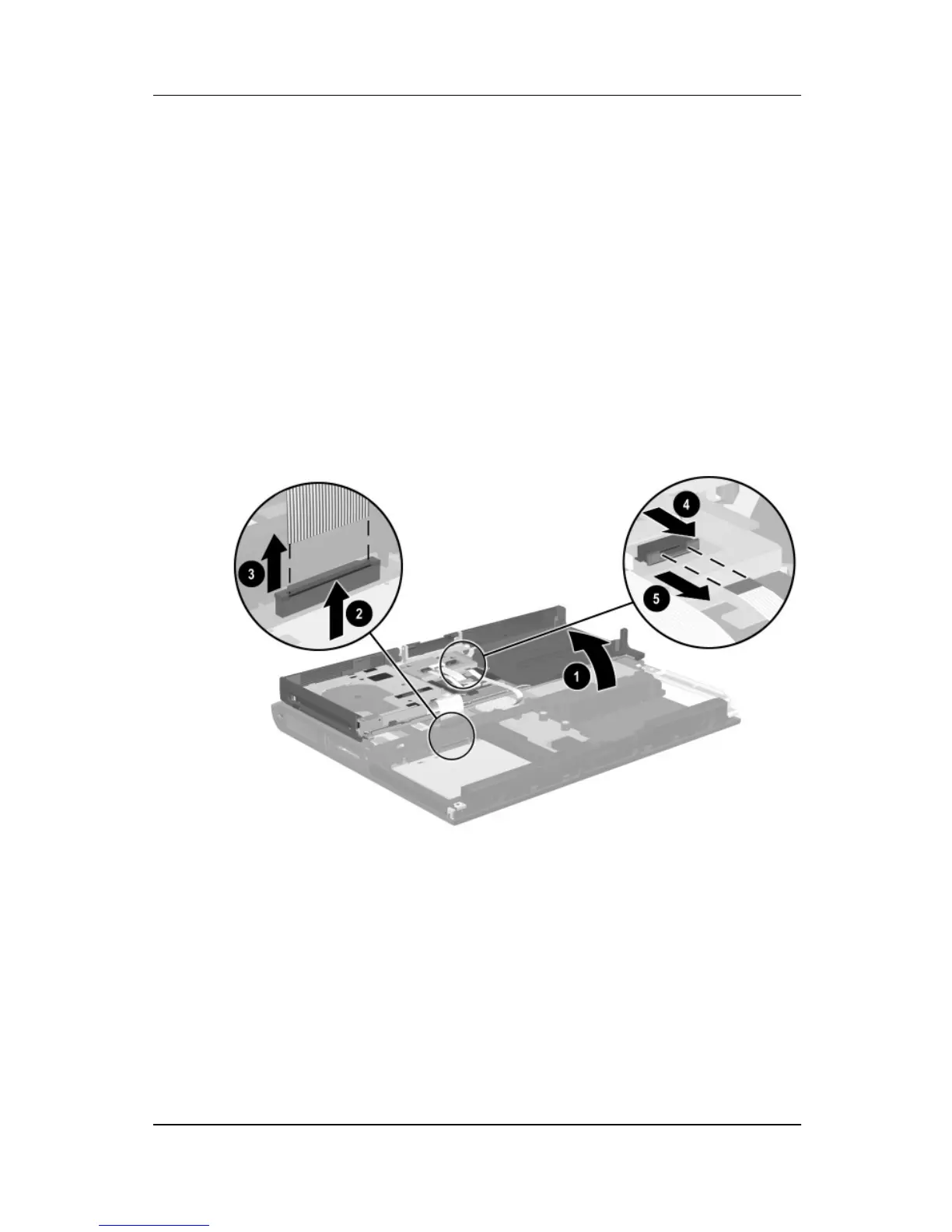

Figure 5-28. Removing the Palm Rest
