5–38 Maintenance and Service Guide
Removal and Replacement Procedures
✎
Dual Stick notebook models have an additional cable that must
be disconnected. Release the ZIF connector
1
to which the
keyboard-to-TouchPad cable is attached and disconnect the
cable
2
from the TouchPad (Figure 5-29).

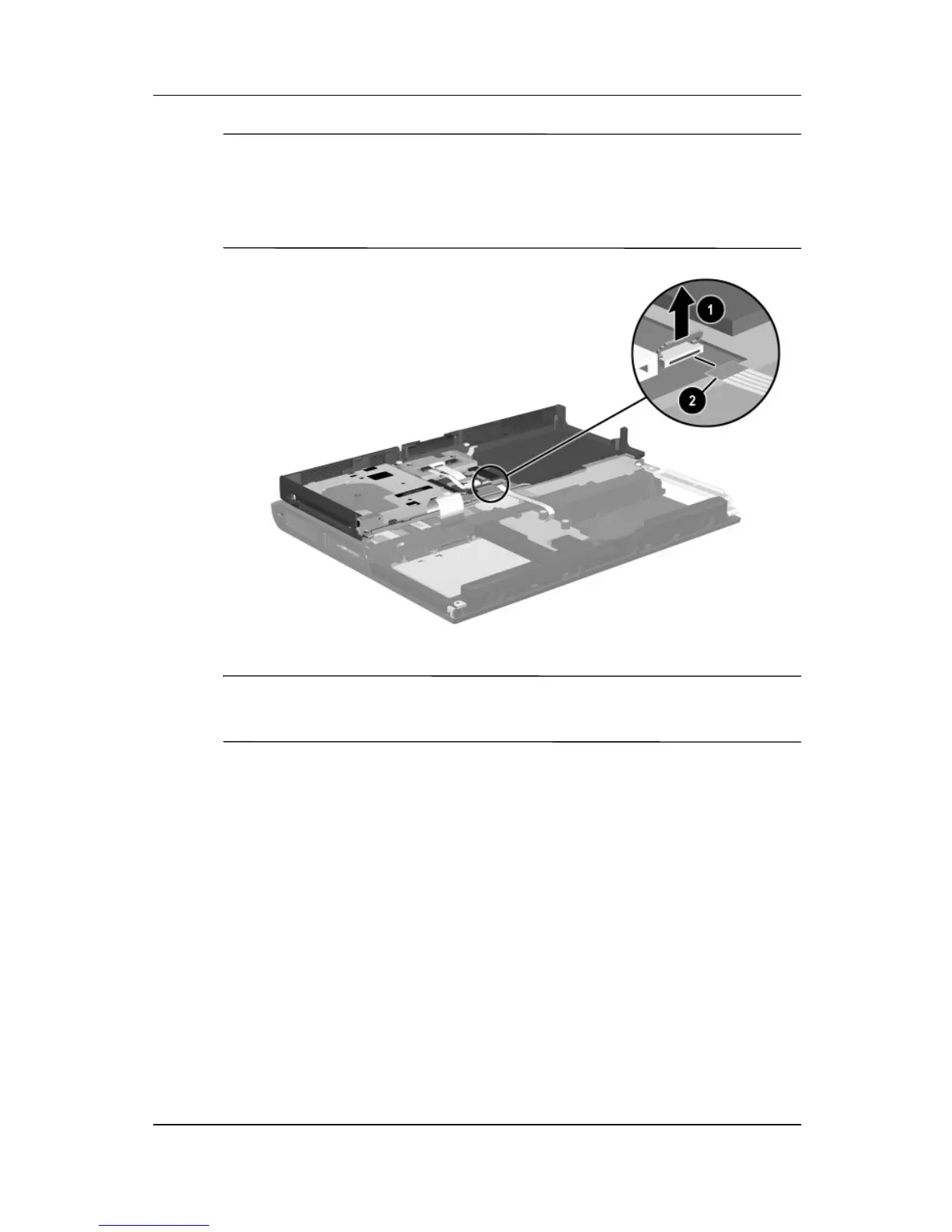

Figure 5-29. Disconnecting the Keyboard-to-TouchPad Cable
✎
The keyboard-to-TouchPad cable is included in the
Miscellaneous Cable Kit, spare part number 285540-001.
11. Remove the palm rest from the base enclosure.
Reverse the preceding procedures to install the palm rest.
