5–42 Maintenance and Service Guide
Removal and Replacement Procedures
5. Disconnect both ends of the TouchPad-to-TouchButton board
cable
1
from the low insertion force (LIF) connectors on the
TouchPad
2
and TouchButton board
3
(Figure 5-32).
6. Remove the TouchPad-to-TouchButton board cable.

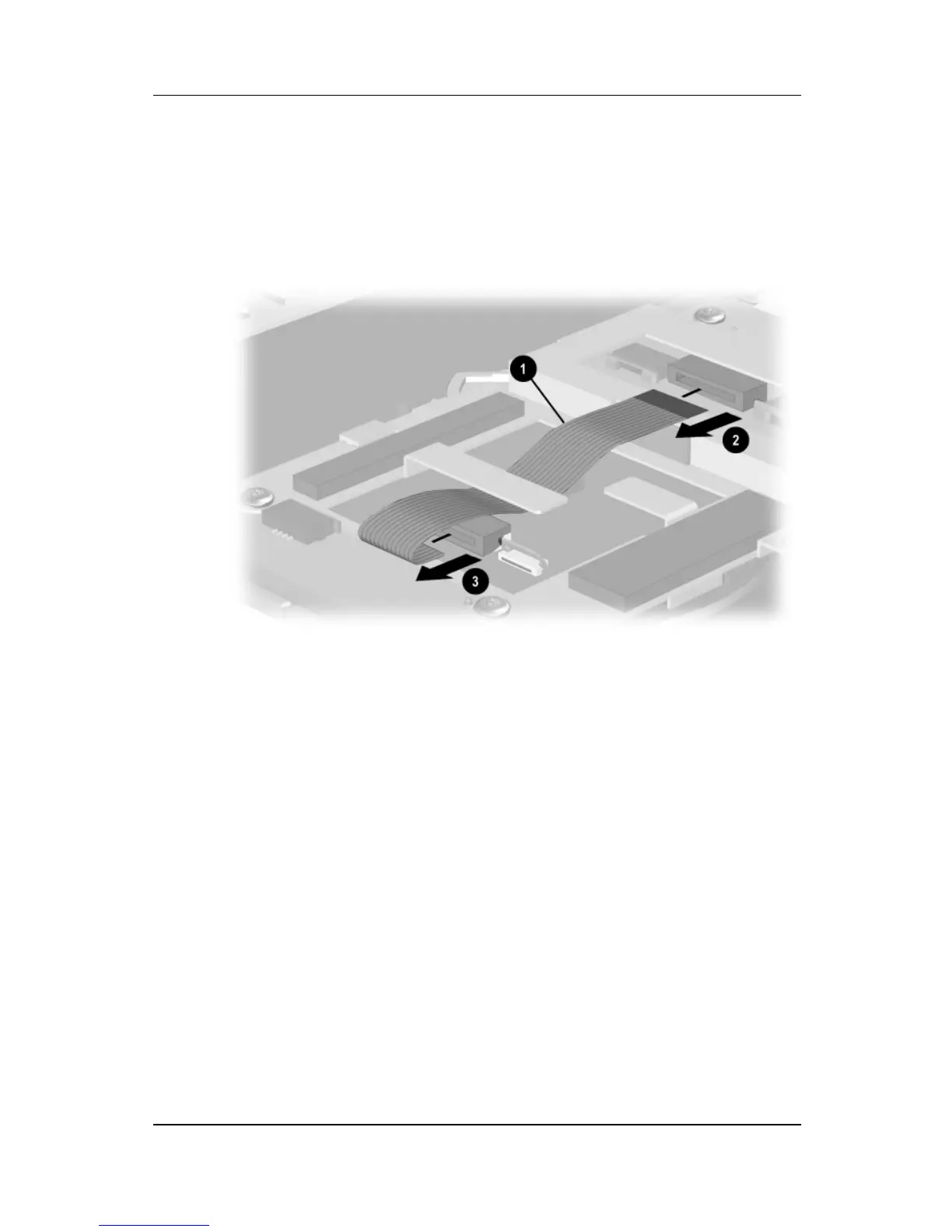

Figure 5-32. Removing the TouchPad-to-TouchButton
Board Cable
