Maintenance and Service Guide C–3

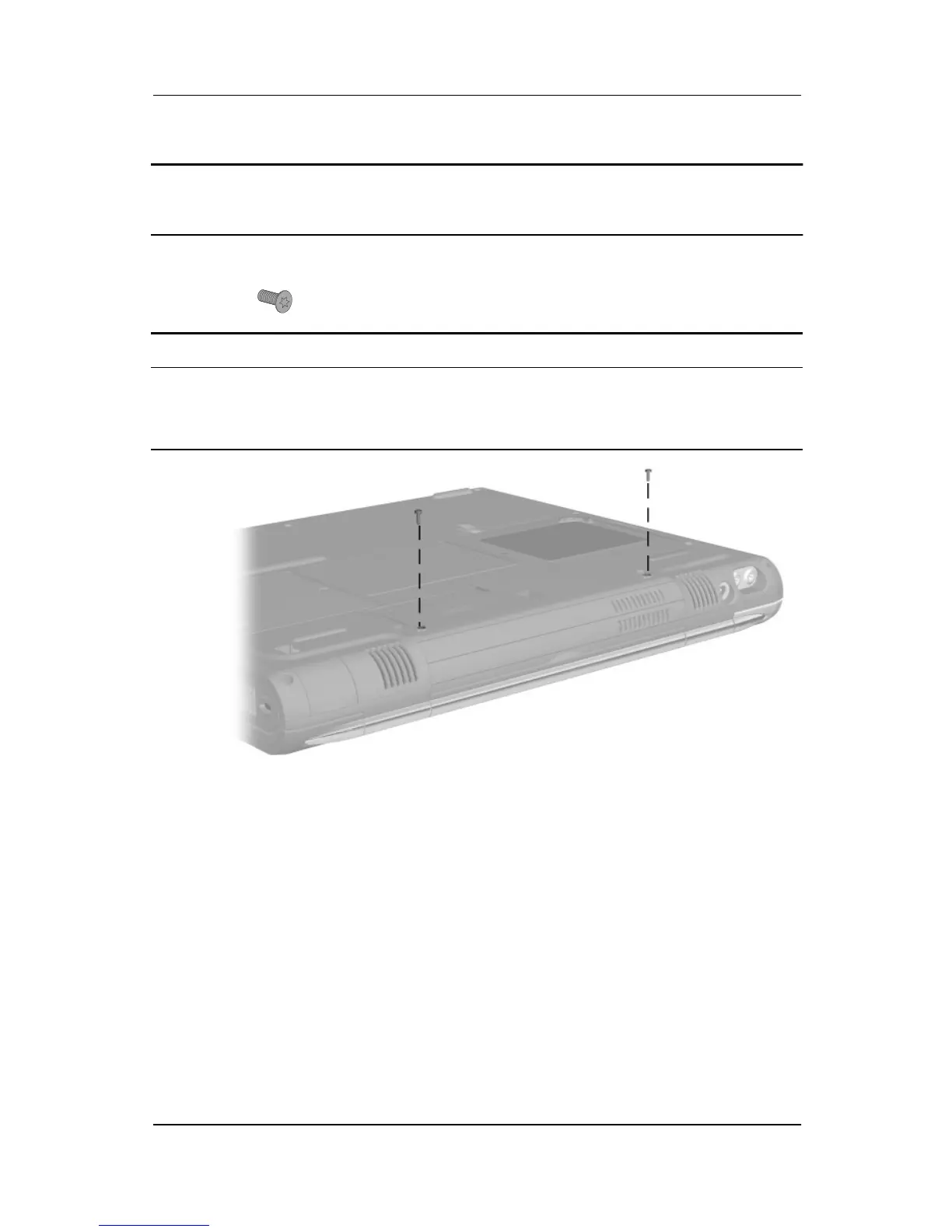

Figure C-2. TM2.5 × 5.0 Screw Locations
Table C-1
Torx T8 Metric 2.5 × 5.0 Screw
(Continued)
Color Qty Length Thread
Head
Width
Silver 30 5.0 mm 2.5 mm 5.0 mm
Where used:
Two screws that secure the connector cover to the base enclosure
(documented in Section 5.8)
