C–4 Maintenance and Service Guide

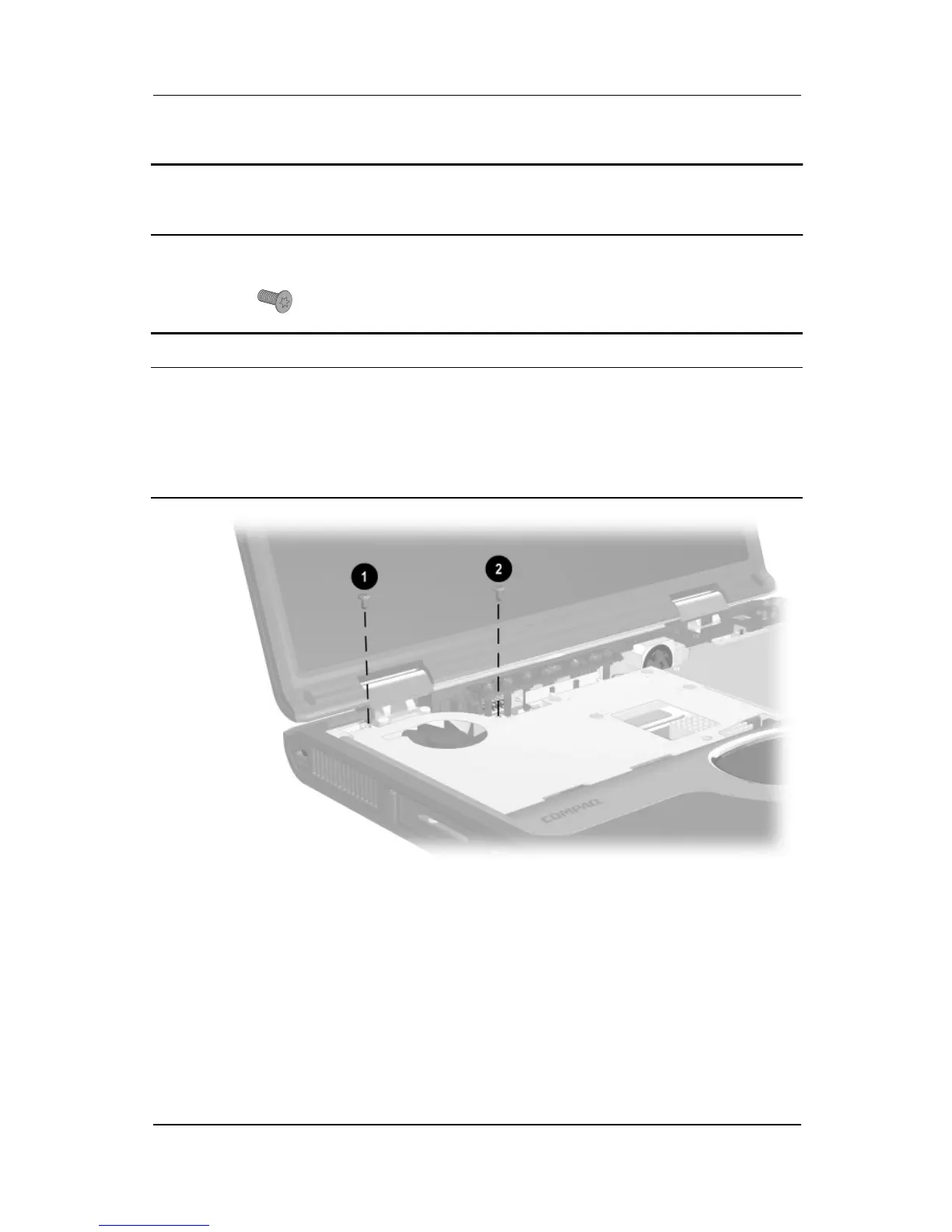

Figure C-3. TM2.5 × 5.0 Screw Locations
Table C-1
Torx T8 Metric 2.5 × 5.0 Screw
(Continued)
Color Qty Length Thread
Head
Width
Silver 30 5.0 mm 2.5 mm 5.0 mm
Where used:
1 One screw that secures the heat spreader to the base enclosure
(documented in Section 5.11)
2 One screw that secures the display video cable ground loop to the heat
spreader (documented in Sections 5.11 and 5.13)
