C–6 Maintenance and Service Guide

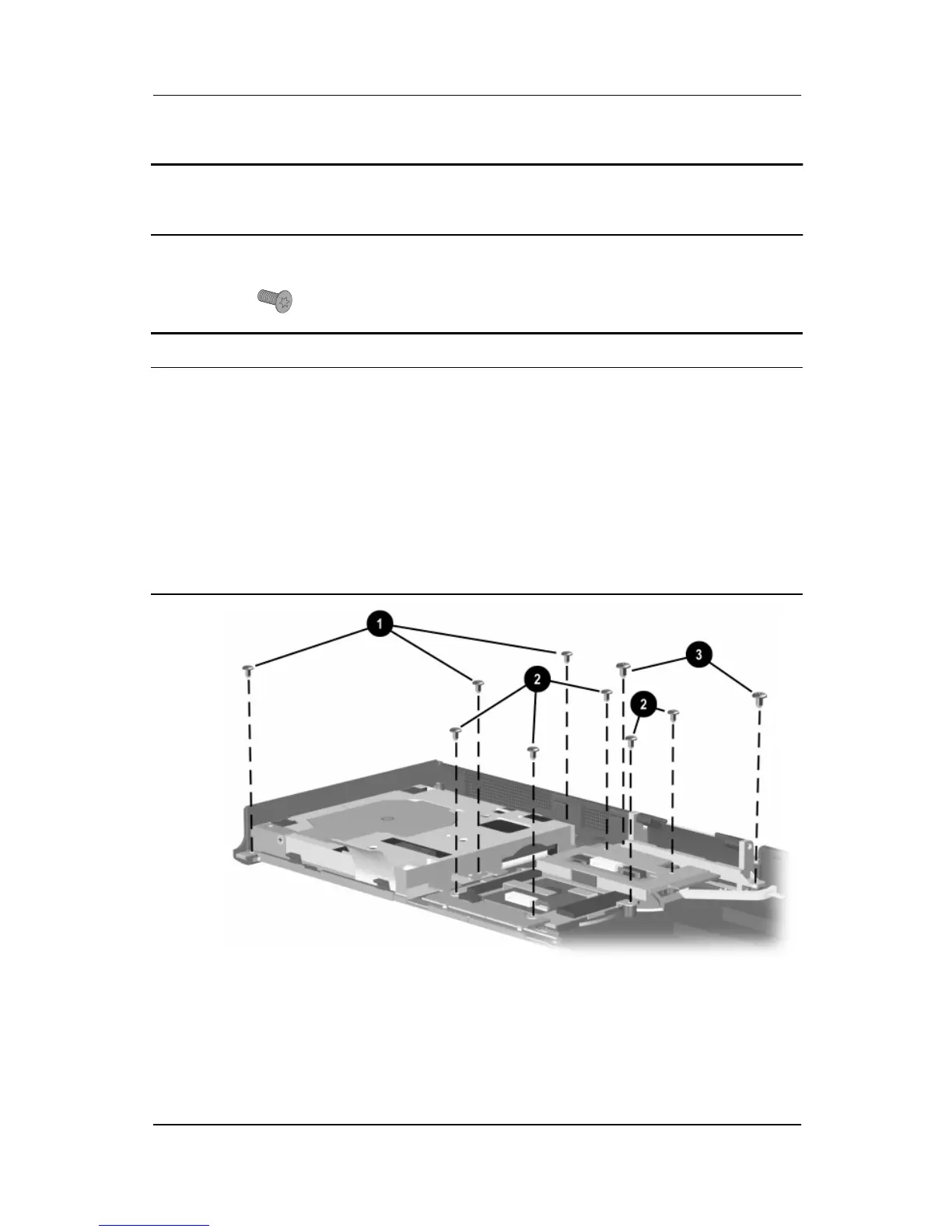

Figure C-5. TM2.5 × 5.0 Screw Locations
Table C-1
Torx T8 Metric 2.5 × 5.0 Screw
(Continued)
Color Qty Length Thread
Head
Width
Silver 30 5.0 mm 2.5 mm 5.0 mm
Where used:
1 Three screws that secure the diskette drive to the palm rest
(documented in Section 5.15)
2 TouchPad only models—Four screws that secure the TouchPad
components to the palm rest (documented in Section 5.16)
2 Dual Stick models—Five screws that secure the TouchPad components to
the palm rest (documented in Section 5.16)
3 Two screws that secure the display release assembly to the palm rest
(documented in Section 5.17)
