Maintenance and Service Guide C–9

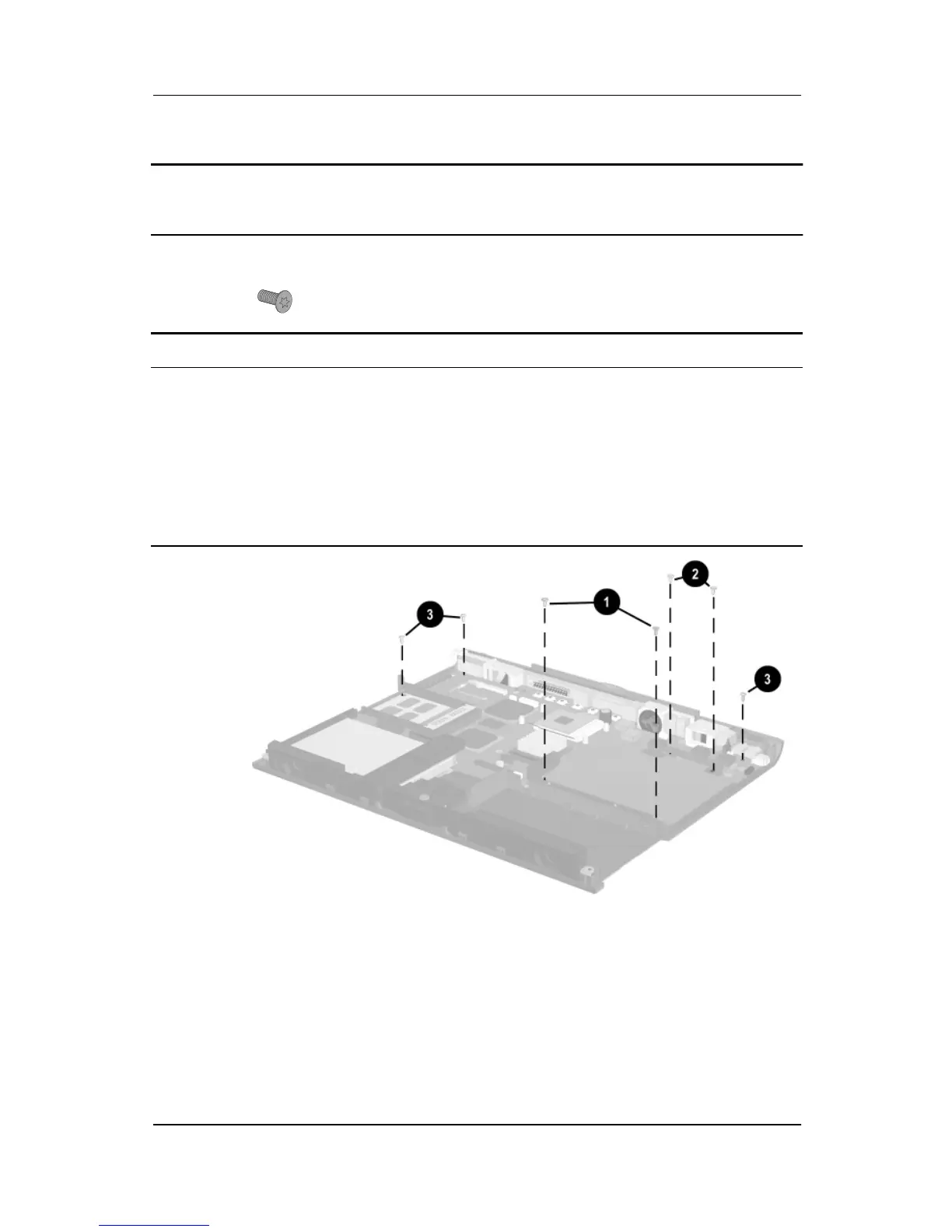

Figure C-8. TM2.5 × 5.0 Screw Locations
Table C-1
Torx T8 Metric 2.5 × 5.0 Screw
(Continued)
Color Qty Length Thread
Head
Width
Silver 30 5.0 mm 2.5 mm 5.0 mm
Where used:
1 Two screws that secure the optical drive front alignment rail to the base
enclosure (documented in Section 5.22)
2 Two screws that secure the optical drive rear alignment rail to the base
enclosure (documented in Section 5.22)
3 Three screws that secure the system board to the base enclosure
(documented in Section 5.22)
