C–10 Maintenance and Service Guide

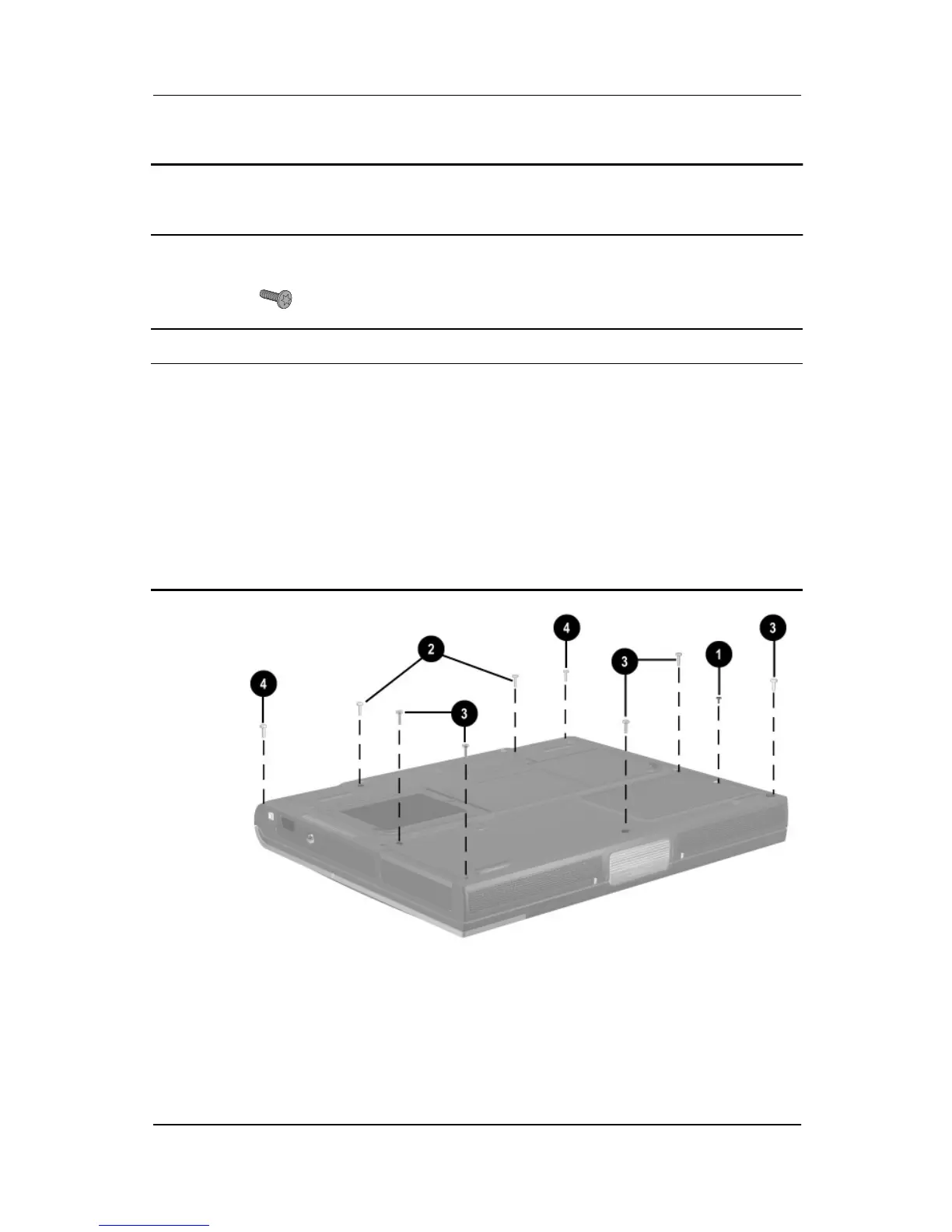

Figure C-9. TM2.5 × 8.0 Screw Locations
Table C-2
Torx T8 Metric 2.5 × 8.0 Screw
Color Qty Length Thread
Head
Width
Silver 11 8.0 mm 2.5 mm 4.0 mm
Where used:
1 One screw that secures the hard drive to the base enclosure
(documented in Section 5.3)
2 Two screws that secure the LED cover to the base enclosure
(documented in Section 5.9)
3 Five screws that secure the palm rest to the base enclosure
(documented in Section 5.14)
4 Two screws that secure the top cover to the base enclosure
(documented in Section 5.20)
