HP D2700 User Manual

I/O module
The I/O module provides the interface between the disk enclosure and the host.
Each I/O module has two ports that can transmit and receive data for bidirectional operation.

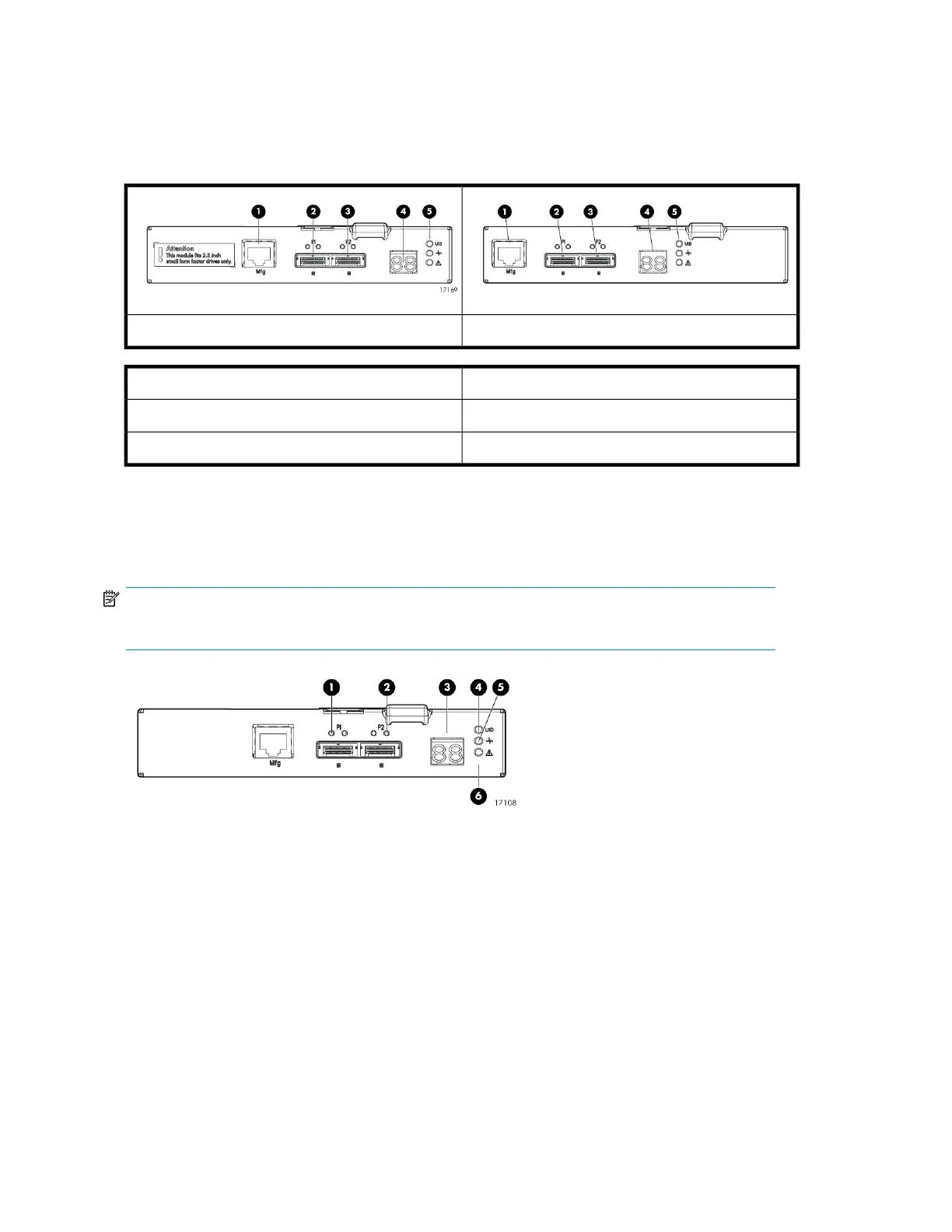

Large Form Factor I/O moduleSmall Form Factor I/O module
4. Double 7–segment display1. Manufacturing diagnostic port
5. I/O module LEDs2. SAS Port 1
3. SAS Port 2
I/O module LEDs
LEDs on the I/O module provide status information about each I/O port and the entire module.
NOTE:
The following image illustrates LEDs on the Small Form Factor I/O module.
Hardware14

HP D2700 Specifications

General

Drive Bays	25
Interface	6 Gb/s SAS
Product Type	Disk enclosure
Enclosure Type	Rack-mountable
Power Supply	Dual hot-plug power supplies
Supported Drive Type	SAS, SATA
Compatibility	HP ProLiant Servers
Cooling	Redundant fans
