HP D2700 User Manual

Large Form Factor disk enclosure chassis

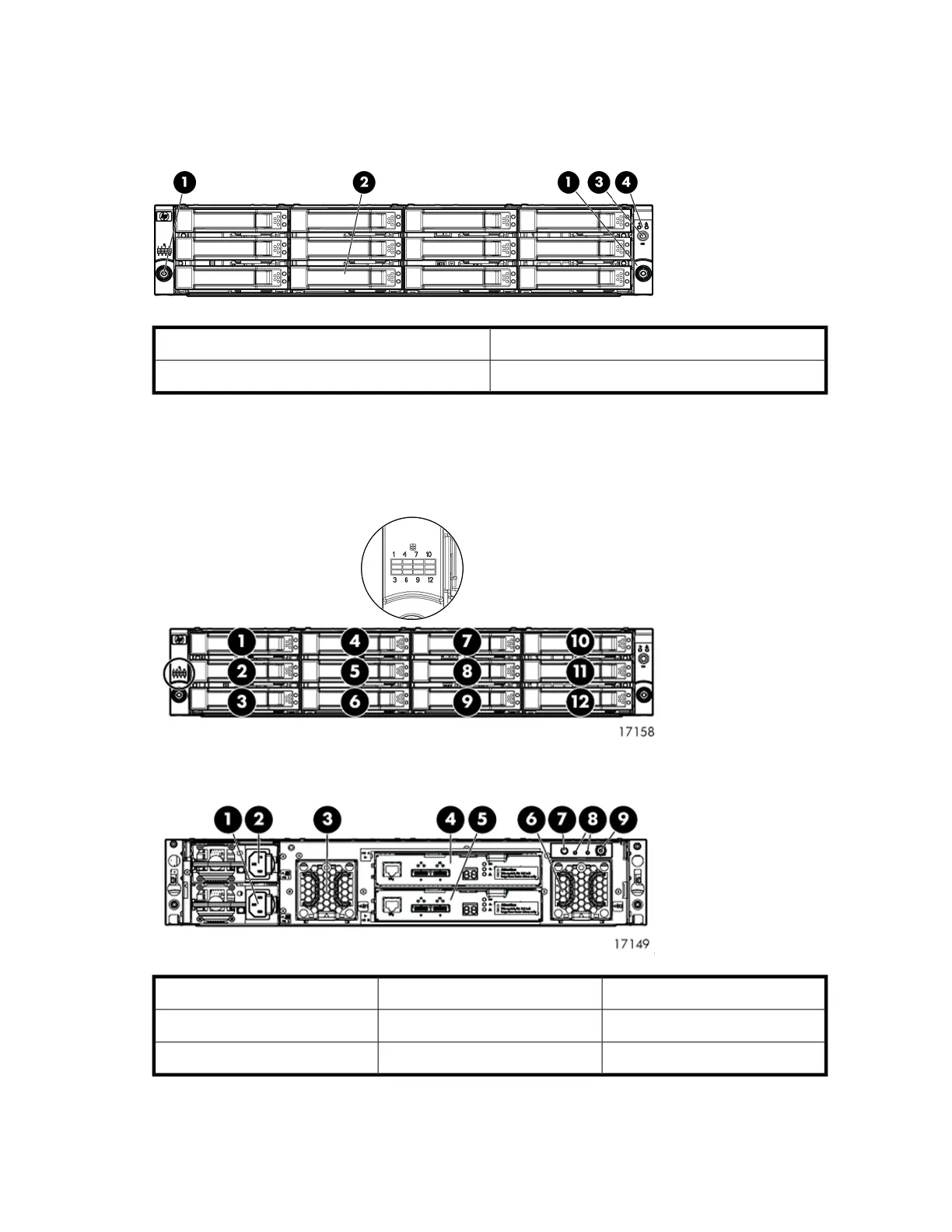

Front view
3. UID push button and LED1. Rack-mounting thumbscrews
4. Enclosure status LEDs2. Disk drive in bay 6
Drive bay numbering
Disk drives mount in bays on the front of the enclosure. Bays are numbered sequentially from top to
bottom and left to right. A drive-bay legend is included on the left bezel.
Rear view
7. UID push button and LED4. I/O module A1. Power supply 1
8. Enclosure status LEDs5. I/O module B2. Power supply 2
9. Power push button and LED6. Fan 23. Fan 1
D2600/D2700 Disk Enclosure User Guide 9

HP D2700 Specifications

General

Drive Bays	25
Interface	6 Gb/s SAS
Product Type	Disk enclosure
Enclosure Type	Rack-mountable
Power Supply	Dual hot-plug power supplies
Supported Drive Type	SAS, SATA
Compatibility	HP ProLiant Servers
Cooling	Redundant fans
