Component identification 14

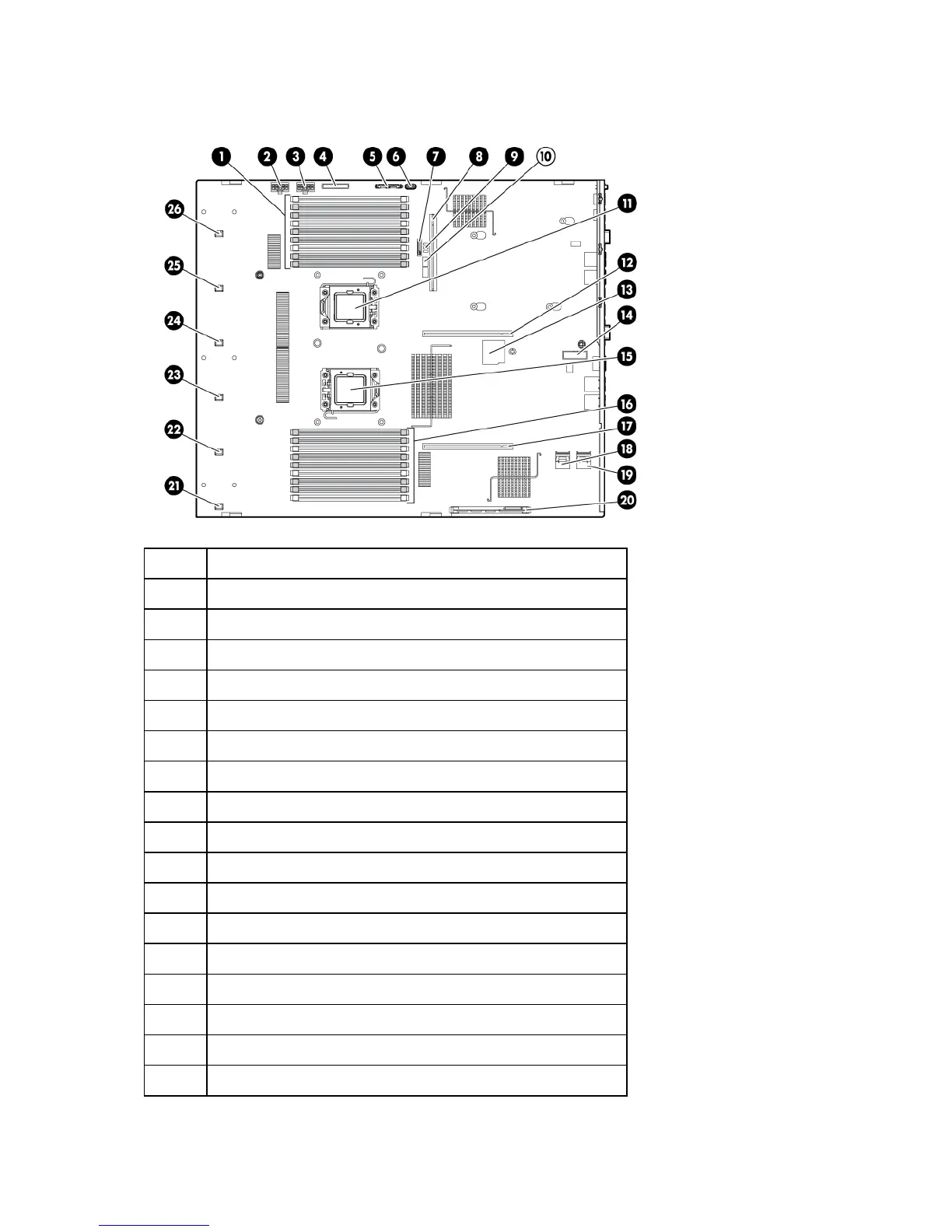

System board components
Item Description
1 Processor 2 DIMM slots
2 SAS power connector A
3 SAS power connector B
4 Front I/O connector
5 SATA optical drive connector
6 Internal USB connector
7 System battery
8 Power supply backplane connector
9 NMI jumper
10 System maintenance switch
11 Processor socket 2
12 Primary riser connector
13 SD card slot
14 TPM connector
15 Processor socket 1 (populated)
16 Processor 1 DIMM slots
17 Secondary riser connector
