Component identification 13

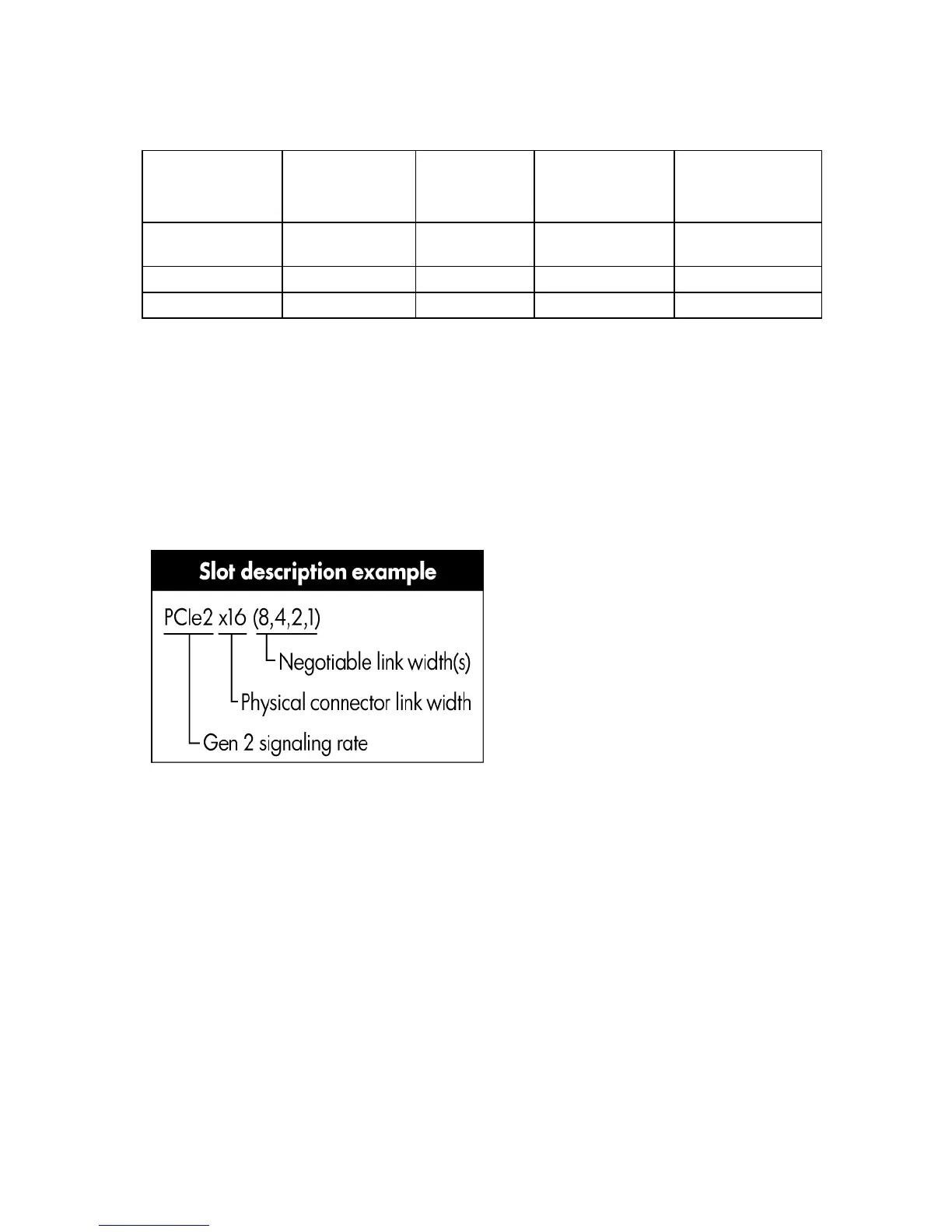

Non-hot-plug PCI riser board slot definitions
Secondary
(slot - form factor)
Primary
(slot - form
factor)
PCIe2 riser
slot description
PCIe2 x16 riser
slot description
PCIe2/PCI-X riser
slot description
4 - FL/FH 1 - FL/FH
PCIe2 x16
(8,4,1)
PCIe2 x16
(16,8,4,1)
PCI-X 64 bit/133
MHz
5 - LP 2 - HL/FH PCIe2 x8 (4,1) — PCIe2 x16 (8,4,1)
6 - LP 3 - HL/FH PCIe2 x8 (4,1) — PCIe2 x8 (4,1)
Notes:
• "Primary" denotes the risers are installed in the primary riser connector.
• "Secondary" denotes the risers are installed in the secondary riser connector.
• Installing the risers listed in the table above in either the primary or secondary riser connectors
determines the form factor of the PCI cards supported by those risers.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe2 x16 riser supports a maximum power of 150 W with an HP power cable. This cable must
be used for PCIe card wattages greater than 75 W.

HP DL380 Specifications

General

Product Line	ProLiant
Memory Type	DDR4
RAID Levels	0, 1, 5, 6, 10, 50, 60
Processor	Intel Xeon Scalable
Memory	HPE DDR4 SmartMemory
Storage	SFF, LFF SAS/SATA/SSD, NVMe PCIe
Server Type	Rack Server
RAID Support	HPE Smart Array Controllers
Management	HPE iLO Standard with Intelligent Provisioning
Power Supply	HPE Flexible Slot Power Supplies
