HP DL380

Component identification 12
6 PCI slot 1
7 Power supply bay 2
8 Power supply bay 1 (populated)
9 USB connectors (2)
10 Video connector
11 NIC 1 connector
12 NIC 2 connector
13 Mouse connector
14 Keyboard connector
15 Serial connector
16 iLO 3 connector
17 NIC 3 connector
18 NIC 4 connector

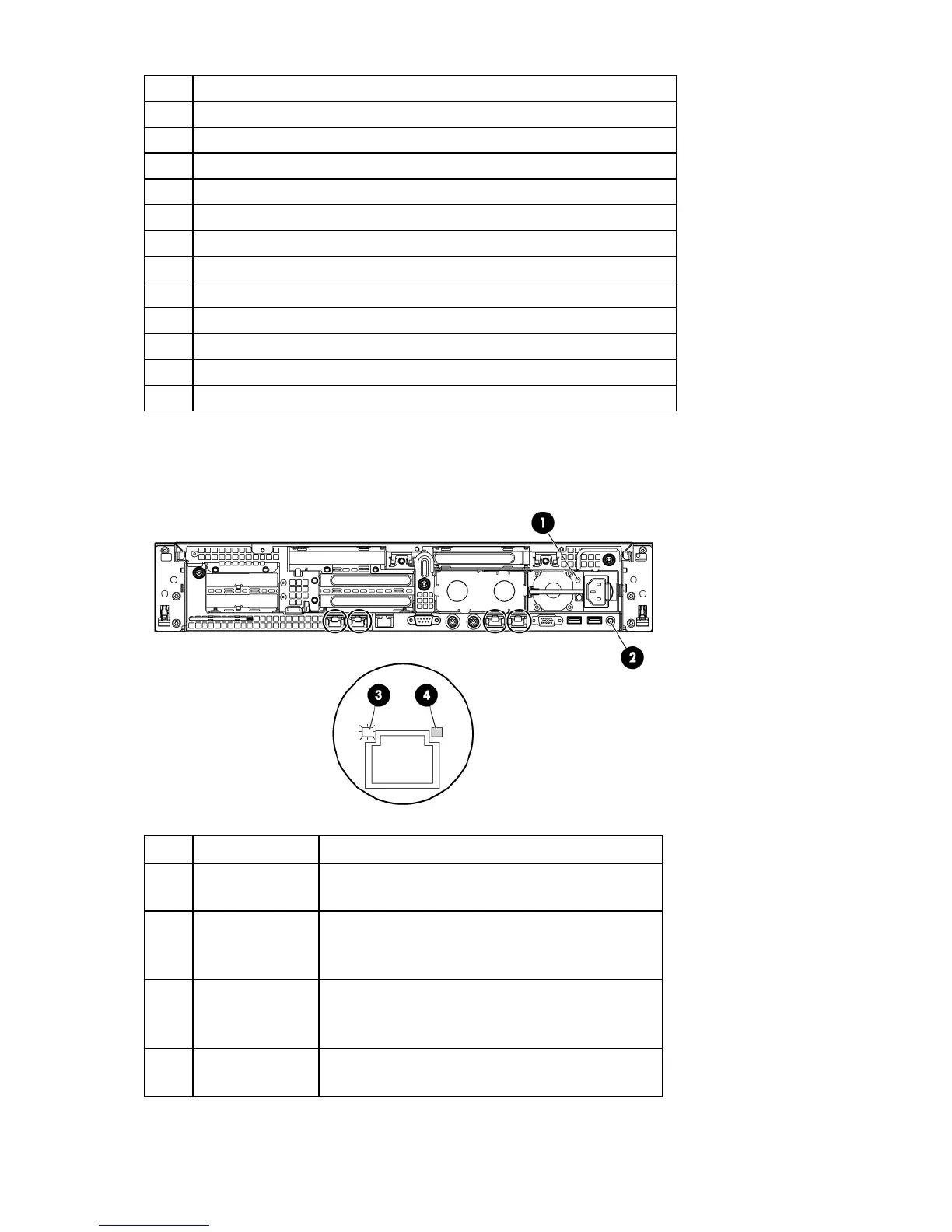

Rear panel LEDs and buttons
Item Description Status
1 Power supply LED Green = Normal
Off = System is off or power supply has failed.
2 UID LED/button Blue = Activated
Flashing blue = System being managed remotely
Off = Deactivated
3
NIC/iLO 3
activity LED
Green = Network activity
Flashing green = Network activity
Off = No network activity
4
NIC/iLO 3 link
LED
Green = Network link
Off = No network link
