Component identification 9
Item Description Status
2 System health LED Green = Normal
Amber = System degraded.
Red = System critical.
To identify components in degraded or critical state, see "Systems
Insight Display LEDs (on page 9)."
3
Power On/Standby button
and system power LED
Green = System on
Amber = System in standby, but power is still applied
Off = Power cord not attached or power supply failure

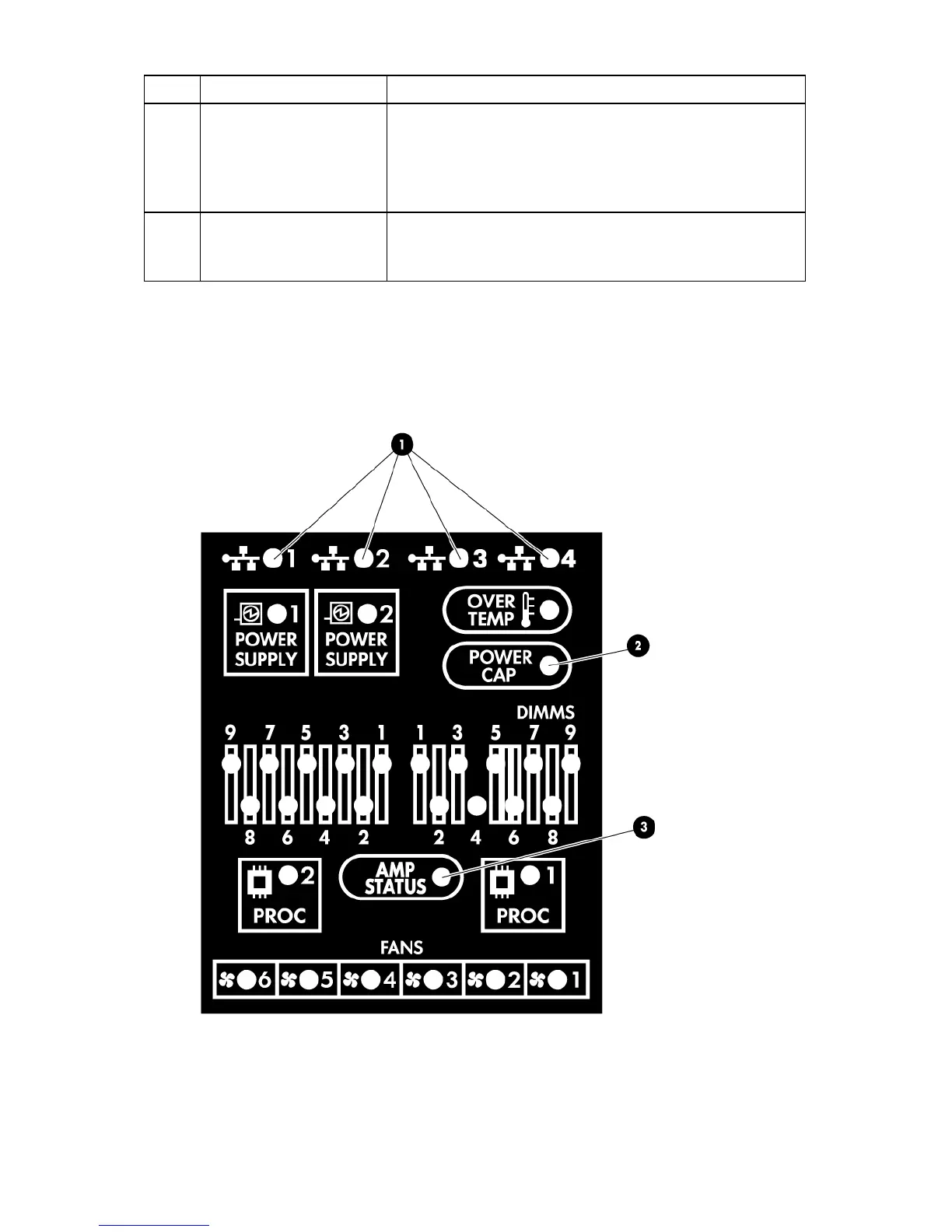

Systems Insight Display LEDs
The HP Systems Insight Display LEDs represent the system board layout. The display enables diagnosis
with the access panel installed.
