15

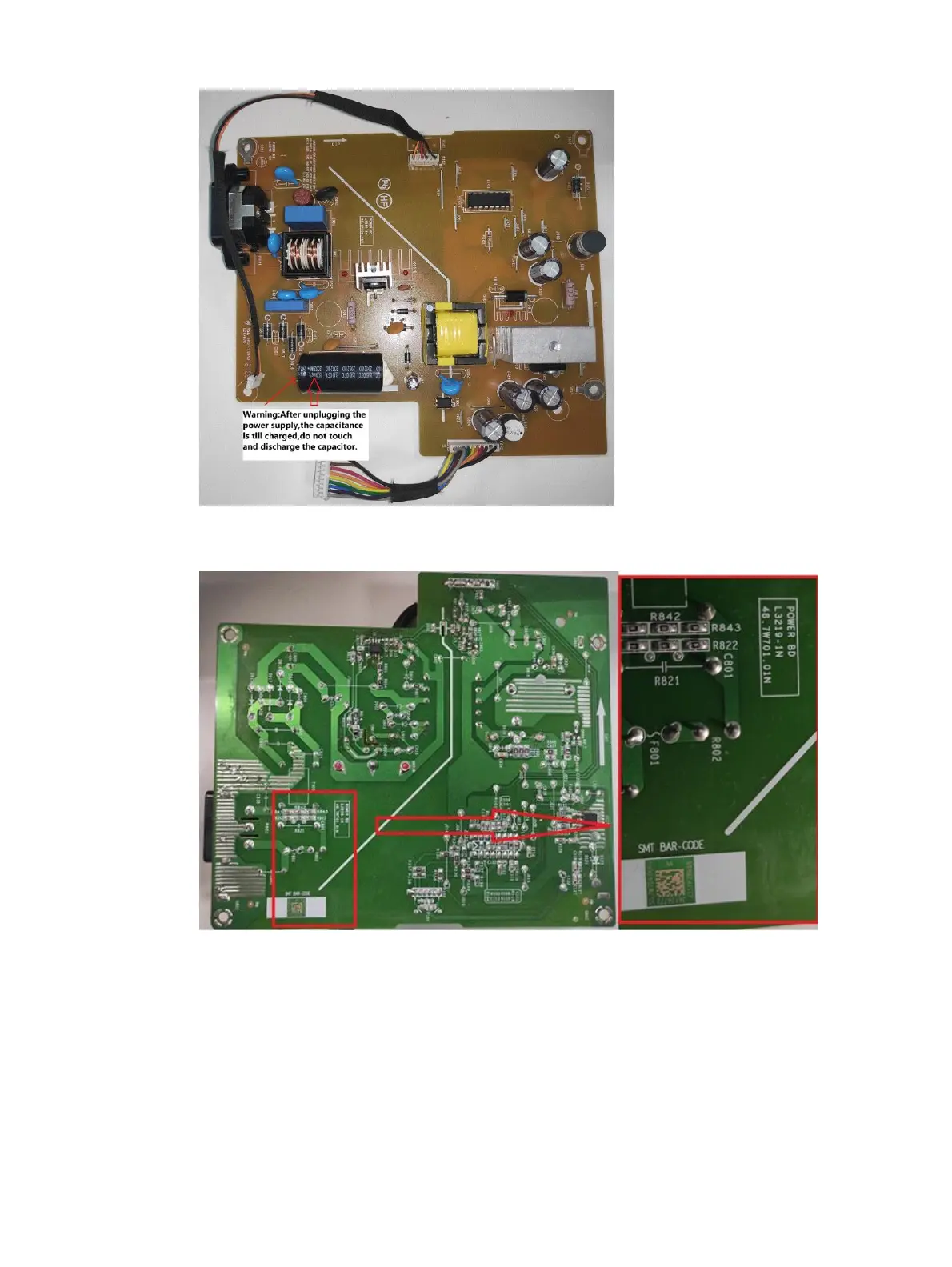

2) Locate the part number location on the board.
3) Pin solder with soldering iron and absorber.
NA
4) Lift the connector up and away from the PCB.
No
Connector repair
This procedure includes D-SUB, DVI, Display Port, USB-B and USB-A connectors.
The connectors are on the main board (board part number 48.7S703.01M and side BD 48.7J705.011).
