HP E190i - D-Sub Connector P302; DVI Connector P303; DP Connector P302

17
D-Sub connector P302

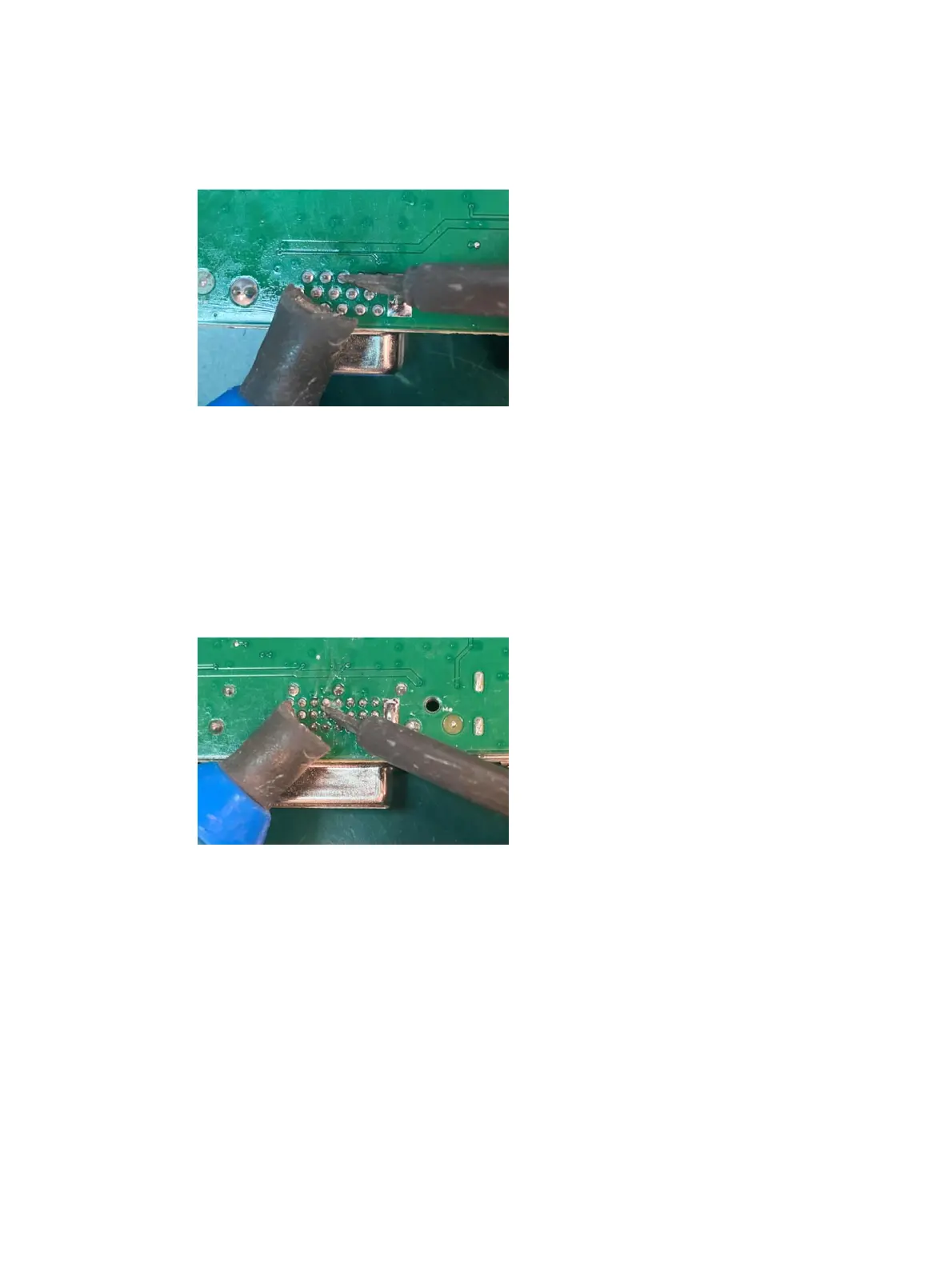

Repair the D-Sub connector:
1) Use a soldering iron to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins
3) Lift the D-Sub connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DVI connector P303
Repair the DVI connector:
1) Use a soldering iron to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins
3) Lift the DVI connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP connector P302
Repair the DP connector:
1) Use a soldering iron to remove as much solder as possible from the pin.
