HP E22 G5 - Page 17

13

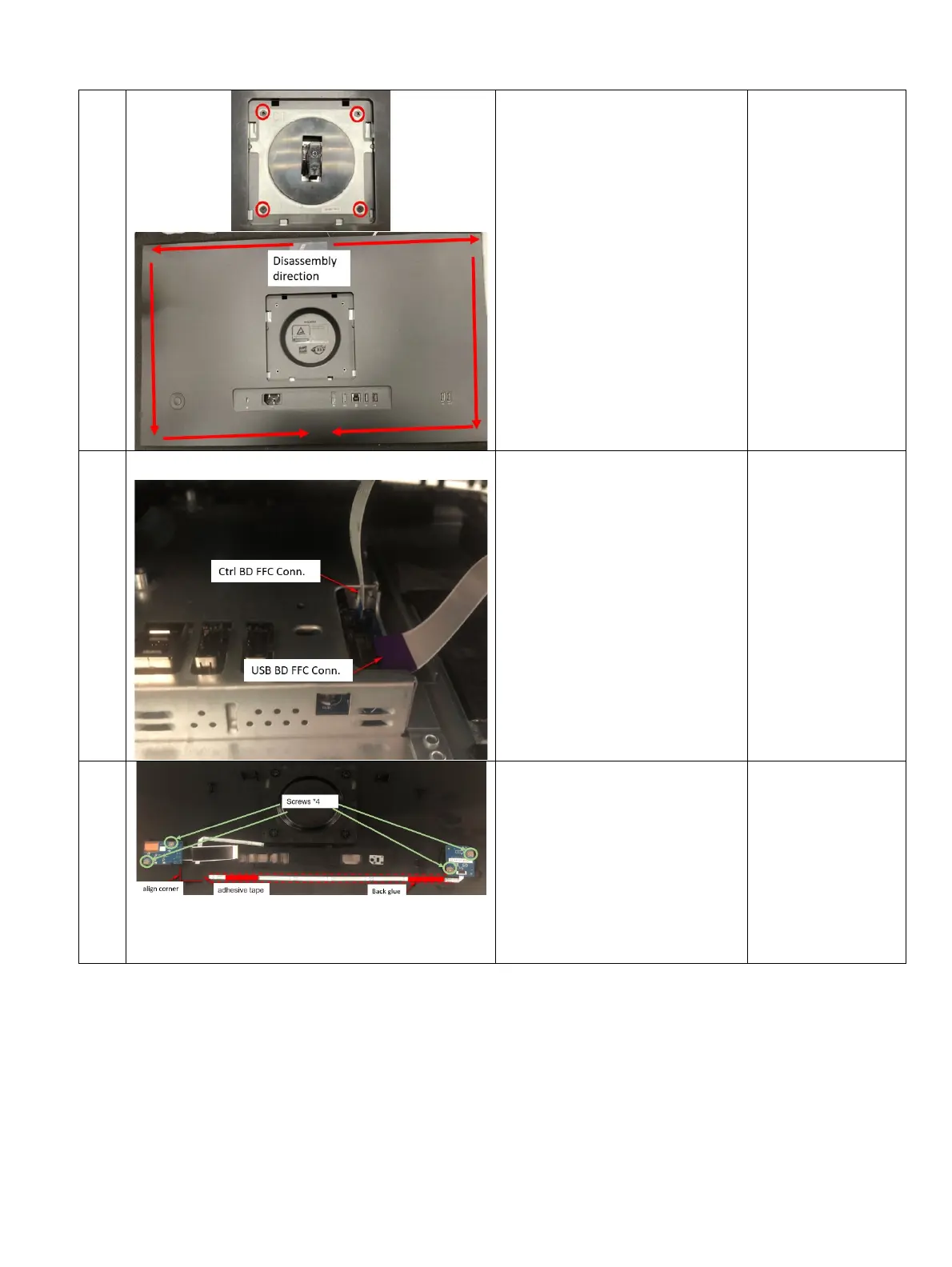

3 1. Disassembly screw
(8F.00729.011) *
4pcs、
2. Disassembly RC from
middle frame.
(1)
Screwdriver：
TORQUE 9±1
(KG-CM),
Screw Head
#2
4
Disconnect Ctrl BD
cable and USB BD
cable from IF BD as
the picture .
.
N/A
5 1. Tear off tape
(3H.04054.071) *1pc
2. Disassembly screw
(8F.MA564.6R0) *
4pcs.
3. Disassembly OSD-BD
and USB BD from RC.
(1)Screwdriver
： TORQUE
3.0±0.5 (KG-
CM), Screw
Head #2
