Optimizing image performance (analog input)

Two controls in the on-screen display can be adjusted to improve image performance: Clock and Phase

(available in the OSD menu).

NOTE: The Clock and Phase controls are adjustable only when using an analog (VGA) input. These controls

are not adjustable for digital inputs.

The Clock must rst be set correctly since the Phase settings are dependent on the main Clock setting. Use

these controls only when the auto-adjustment function does not provide a satisfactory image.

●

Clock: Increases/decreases the value to minimize any vertical bars or stripes visible on the screen

background.

●

Phase: Increases/decreases the value to minimize video ickering or blurring.

NOTE: When using the controls, you will obtain the best results by using the auto-adjustment pattern

software utility provided on the optical disc.

When adjusting the Clock and Phase values, if the monitor images become distorted, continue adjusting the

values until the distortion disappears. To restore the factory settings, select Yes from the Factory Reset

menu in the on-screen display.

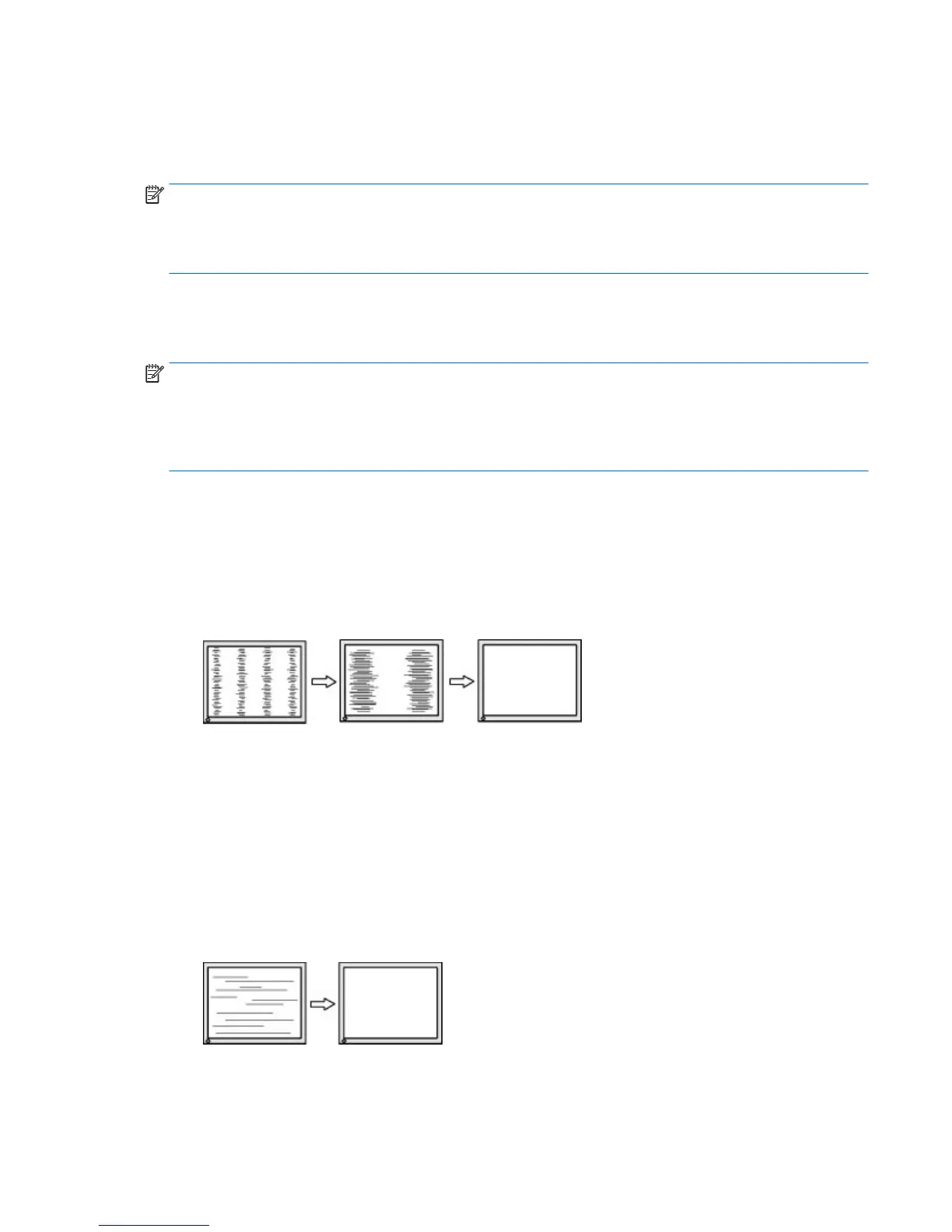

To eliminate vertical bars (Clock):

1. Press the Menu button on the monitor front bezel to open the OSD menu, and then select Image

Control.

2. Select Clock and Phase.

3. Use the function buttons on the monitor front bezel that display up and down arrow icons to eliminate

vertical bars. Press the buttons slowly so that you do not miss the optimum adjustment point.

4. After adjusting the Clock, if blurring, ickering, or bars appear on the screen, proceed to adjust the

Phase.

To remove ickering or blurring (Phase):

1. Press the Menu button on the monitor front bezel to open the OSD menu, and then select Image

Control.

2. Select Clock and Phase.

3. Press the function buttons on the monitor front bezel that display up and down arrow icons to eliminate

ickering or blurring. Flickering or blurring may not be eliminated, depending on the computer or

graphics controller card installed.

To correct screen position (Horizontal Position or Vertical Position):

Optimizing image performance (analog input) 25
