3) Lift the CN501 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
USB 3.0A (UP) connector CN105
Repair the USB 3.0A connector:

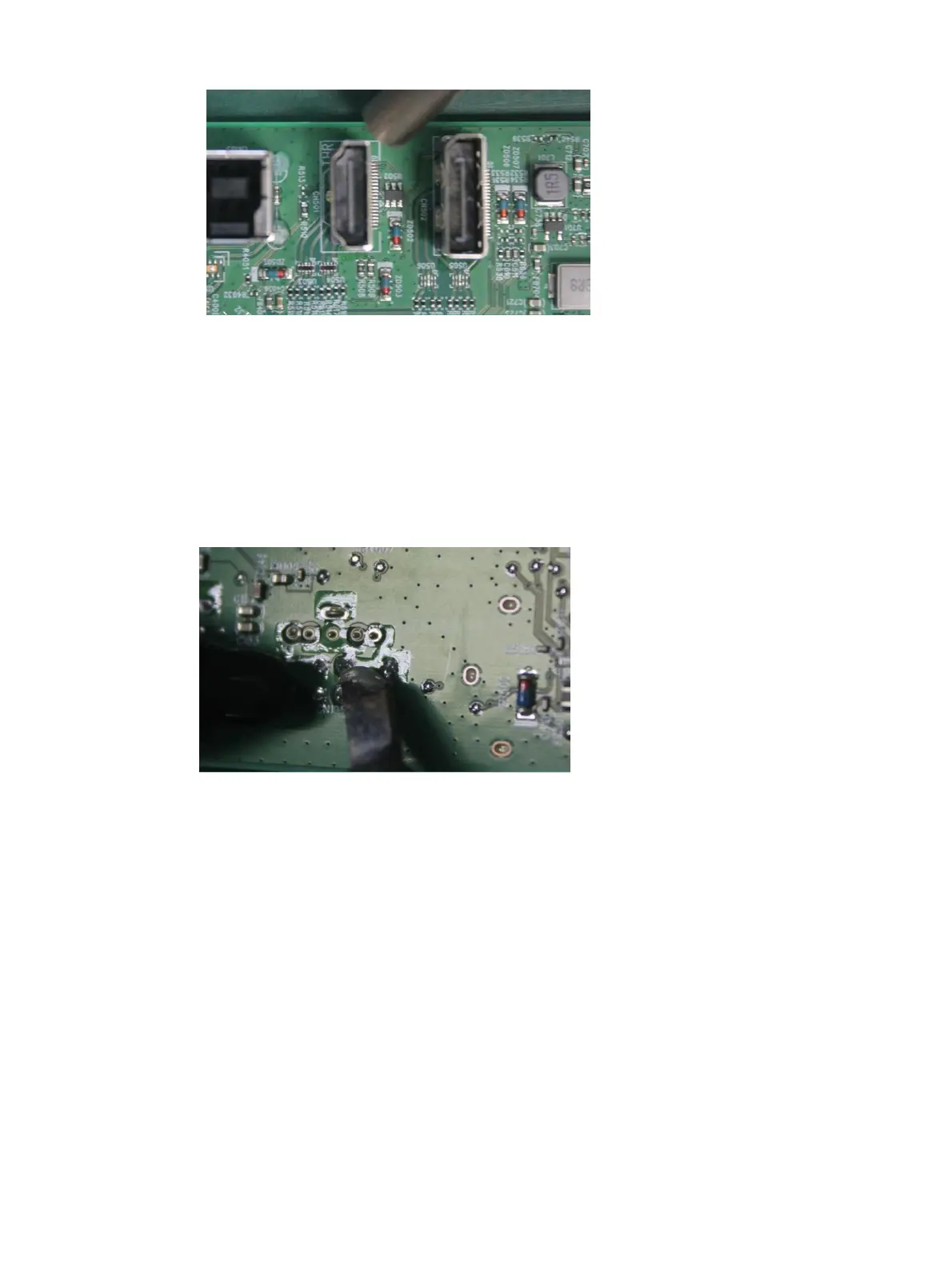

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN105 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
USB 3.0A (1/2) connector CN104/CN106
Repair the USB3.0A connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
