HP E24t G5

21

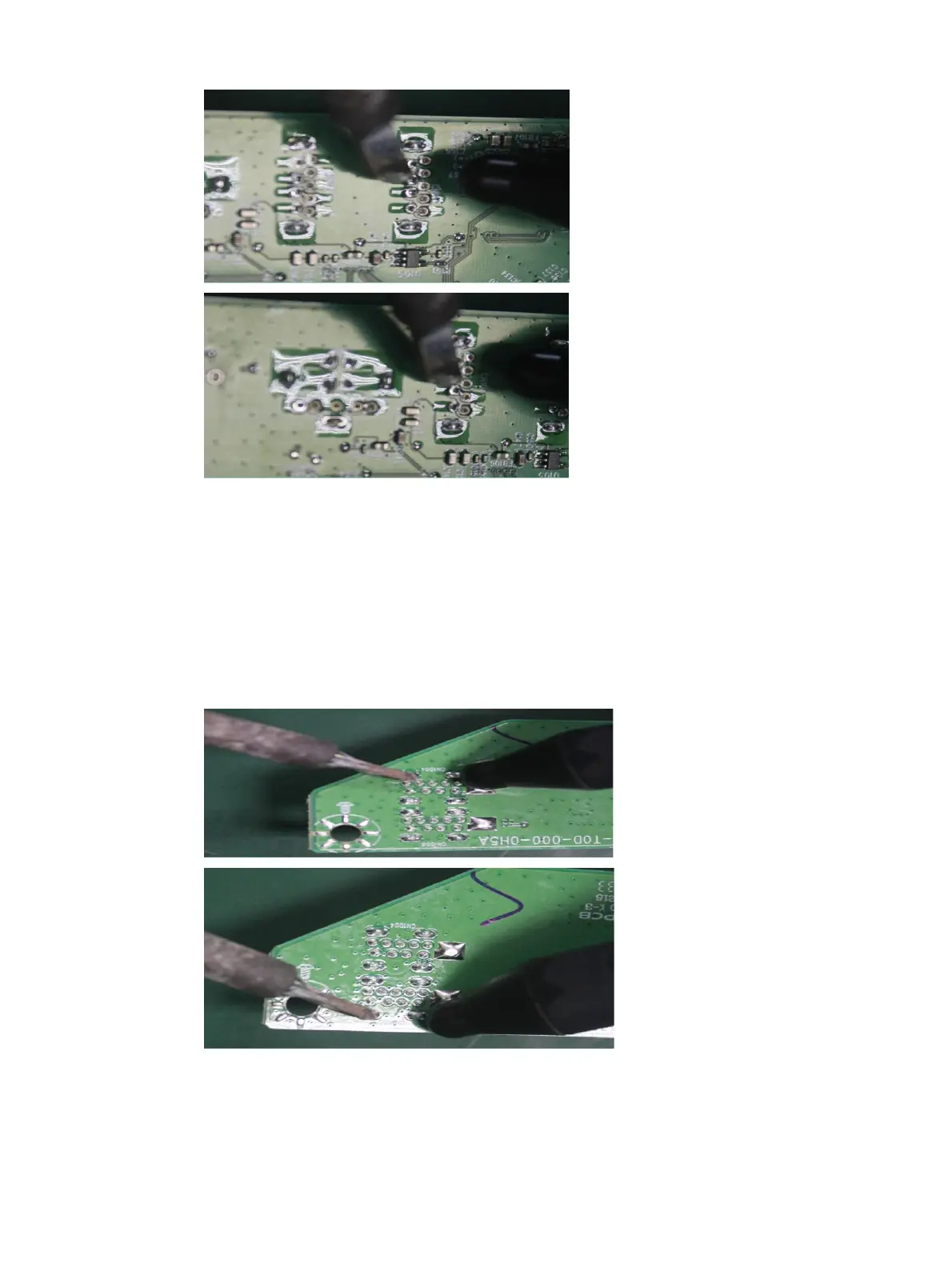

2) Lift the CN104/CN106 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
USB 3.0A (3/4) connector CN1004/CN1005
Repair the USB 3.0A connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN1004/CN1005 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
