Component Description
(4) Memory card reader Reads optional memory cards that store, manage, share, or access
information.
(5) RJ-45 (network) jack/lights Connects a network cable.
●
Green (left): The network is connected.
●
Amber (right): Activity is occurring on the network.
(6) Docking connector Connects an optional docking device.
(7) Power connector Connects an AC adapter.

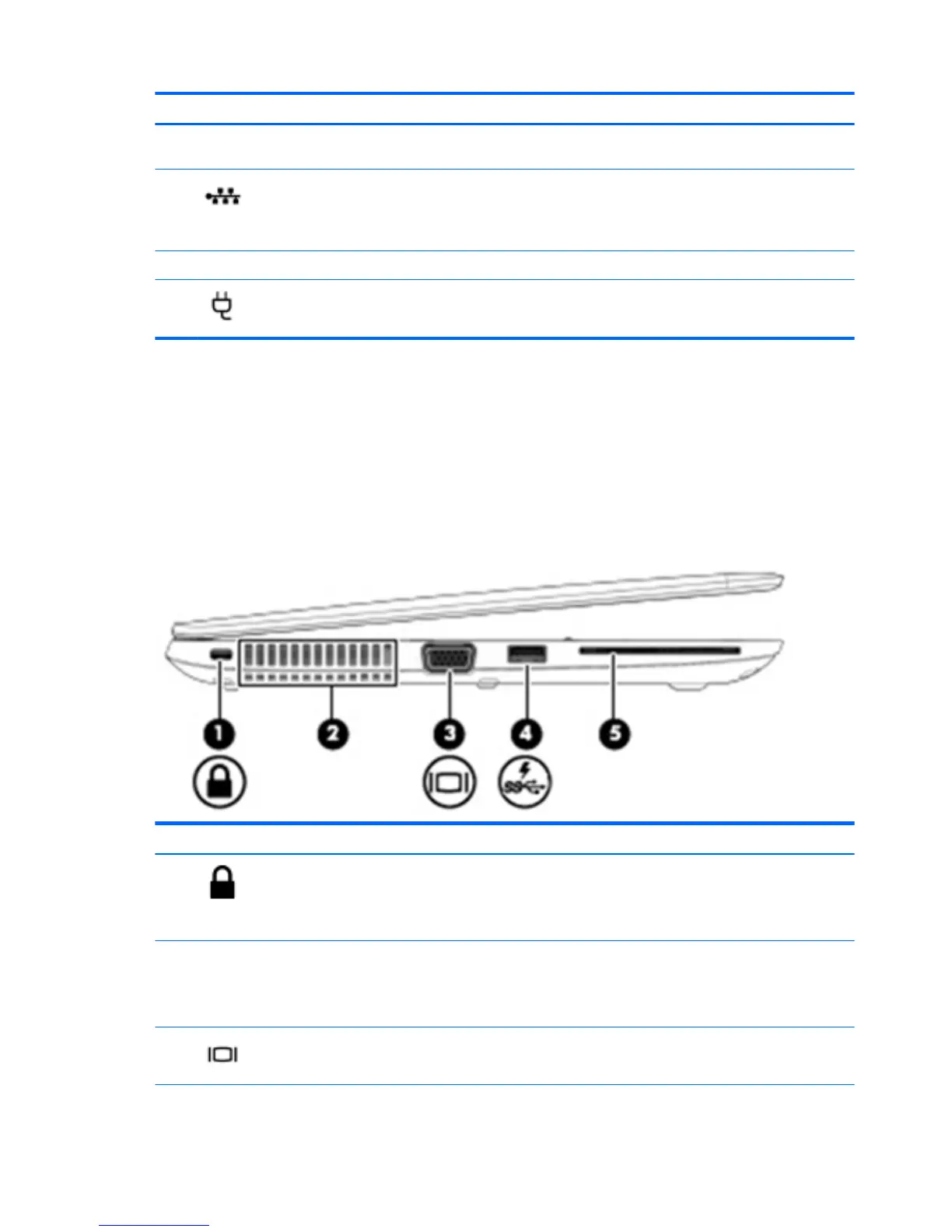

Left
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
(2) Vents Enable airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and o during routine operation.
(3) External monitor port Connects an external VGA monitor or projector.
12 Chapter 2 External component identication
