M.2 solid-state drive
Description Spare part number
120-GB, SATA-3, M.2, solid-state drive 781852-001
32-GB, SATA-3, M.2, solid-state drive 781851-001
Before removing the solid-state drive, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the service cover (see Service cover on page 37).
5. Remove the battery (see Battery on page 39).
Remove the solid-state drive:

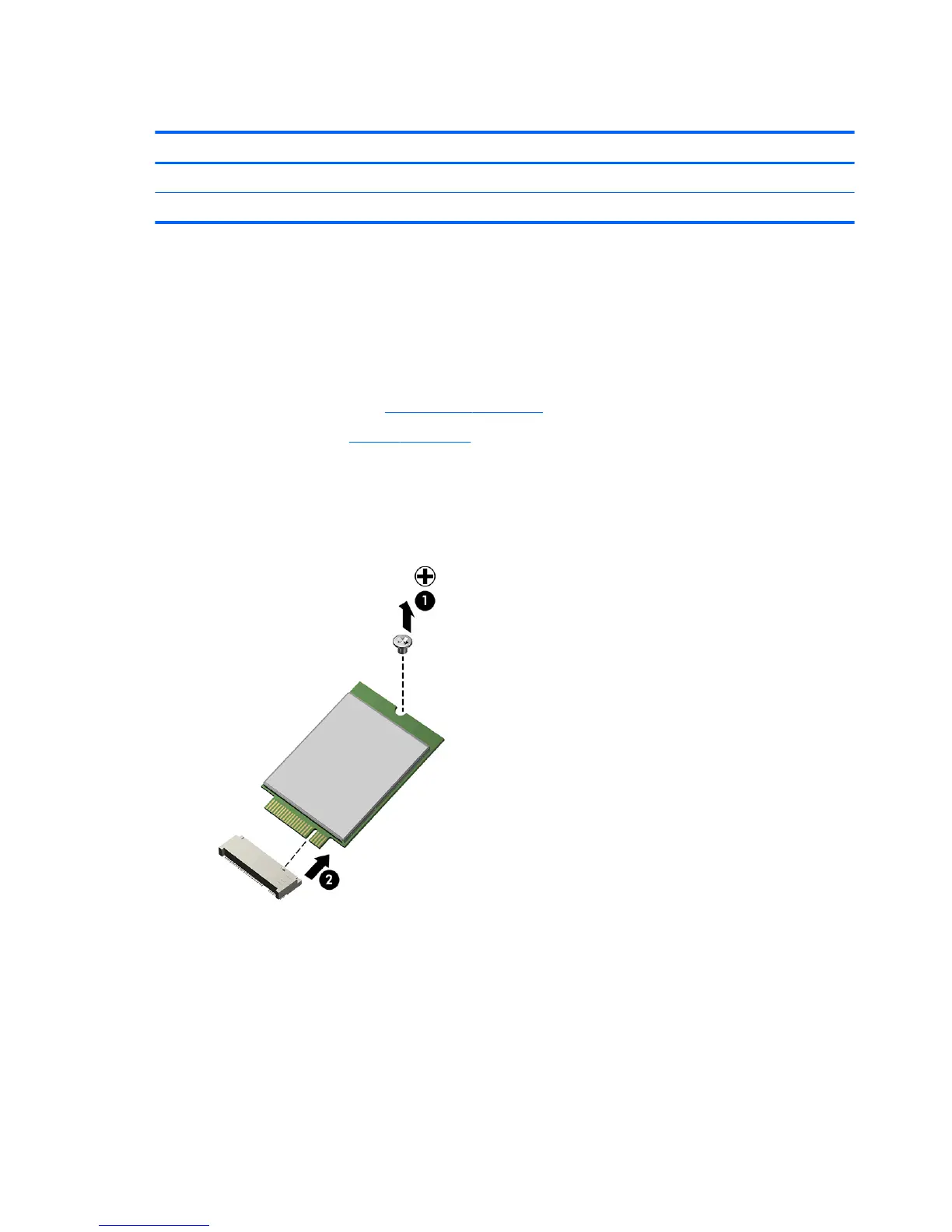

1. Remove the Phillips PM2.0×2.5 screw (1) that secures the solid-state drive to the system board. (The
solid-state drive tilts up.)
2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
46 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
