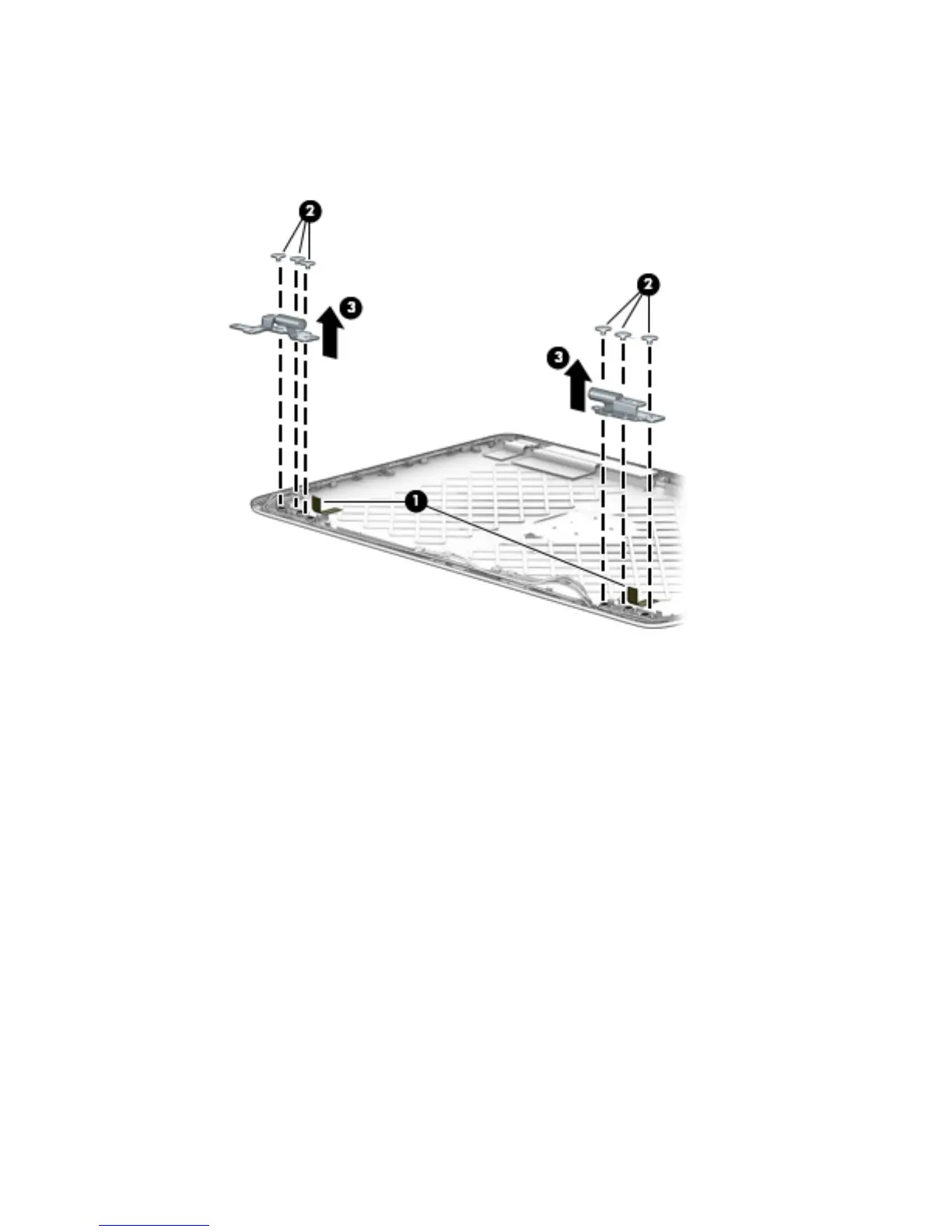

c. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kits, spare part numbers 775895-001 (for use
only on computer models equipped with an FHD display) and 730543-001 (for use only on
computer models equipped with an HD display).
10. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
b. Release the WLAN antenna cables from the clips (2) built into the left and right sides of the
display enclosure.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
