Table 5-2 WLAN module descriptions and part numbers
Description Spare part number
Intel AX211 Wi-Fi 6E Bluetooth 5.3 vPro M53363-001
Intel AX211 Wi-Fi 6e Bluetooth 5.3 M53366-001
Intel BE200 Wi-Fi 7 Bluetooth 5.4 WLAN (vPro) N39882-001
Intel BE200 Wi-Fi 7 Bluetooth 5.4 WLAN (non-vPro) N39883-001
IMPORTANT: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 37).
2. Remove the bottom cover (see Bottom cover on page 37).
3. Disconnect the battery cable from the system board (see Battery on page 48).
Remove the WLAN module:

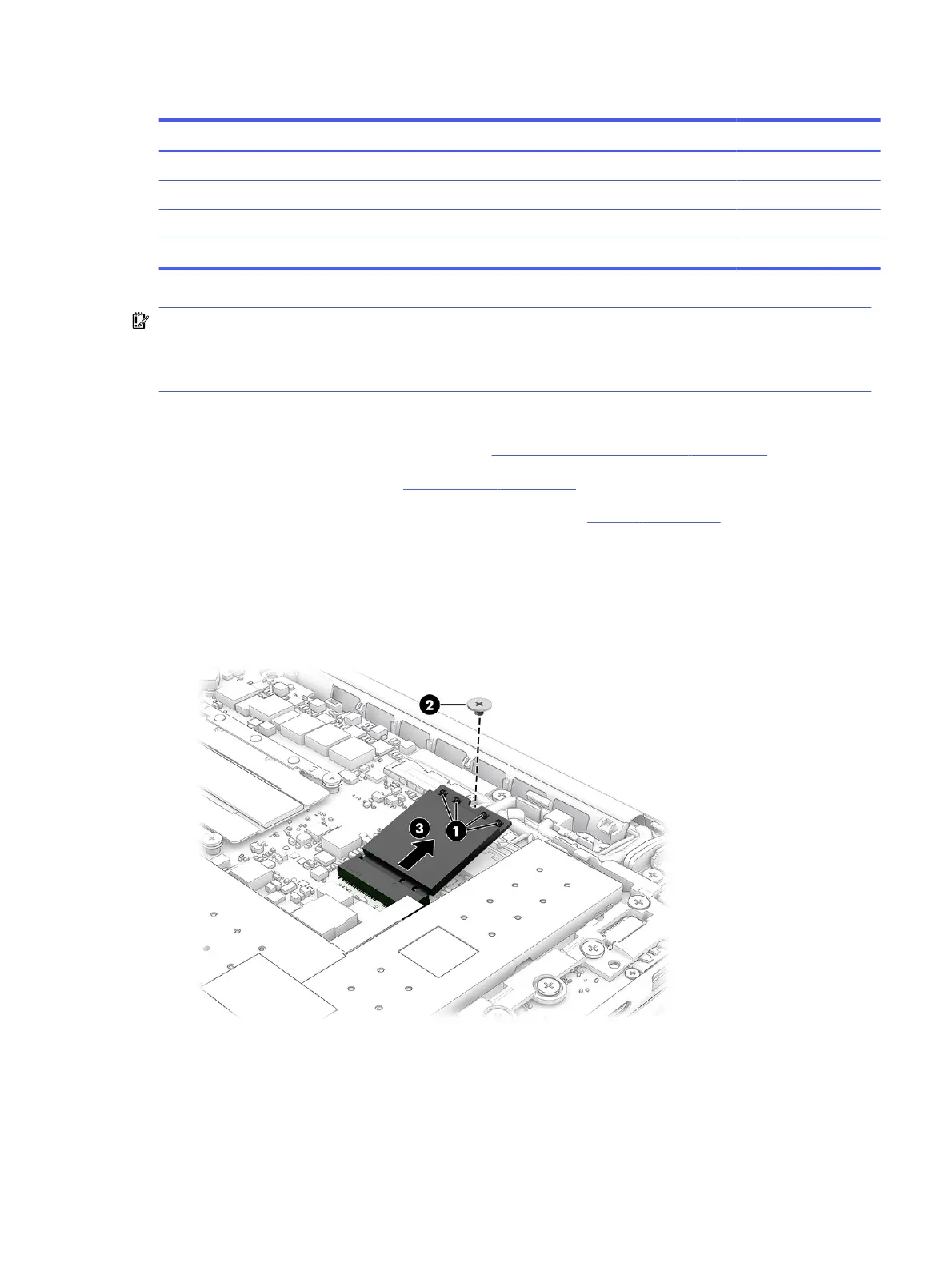

1. Carefully disconnect the cables from the terminals (1) on the module. The number of antenna
cables can vary.
2. Remove the Phillips M2.0 × 2.5 screw (2), and then remove the WLAN module (3).
WLAN module
39
