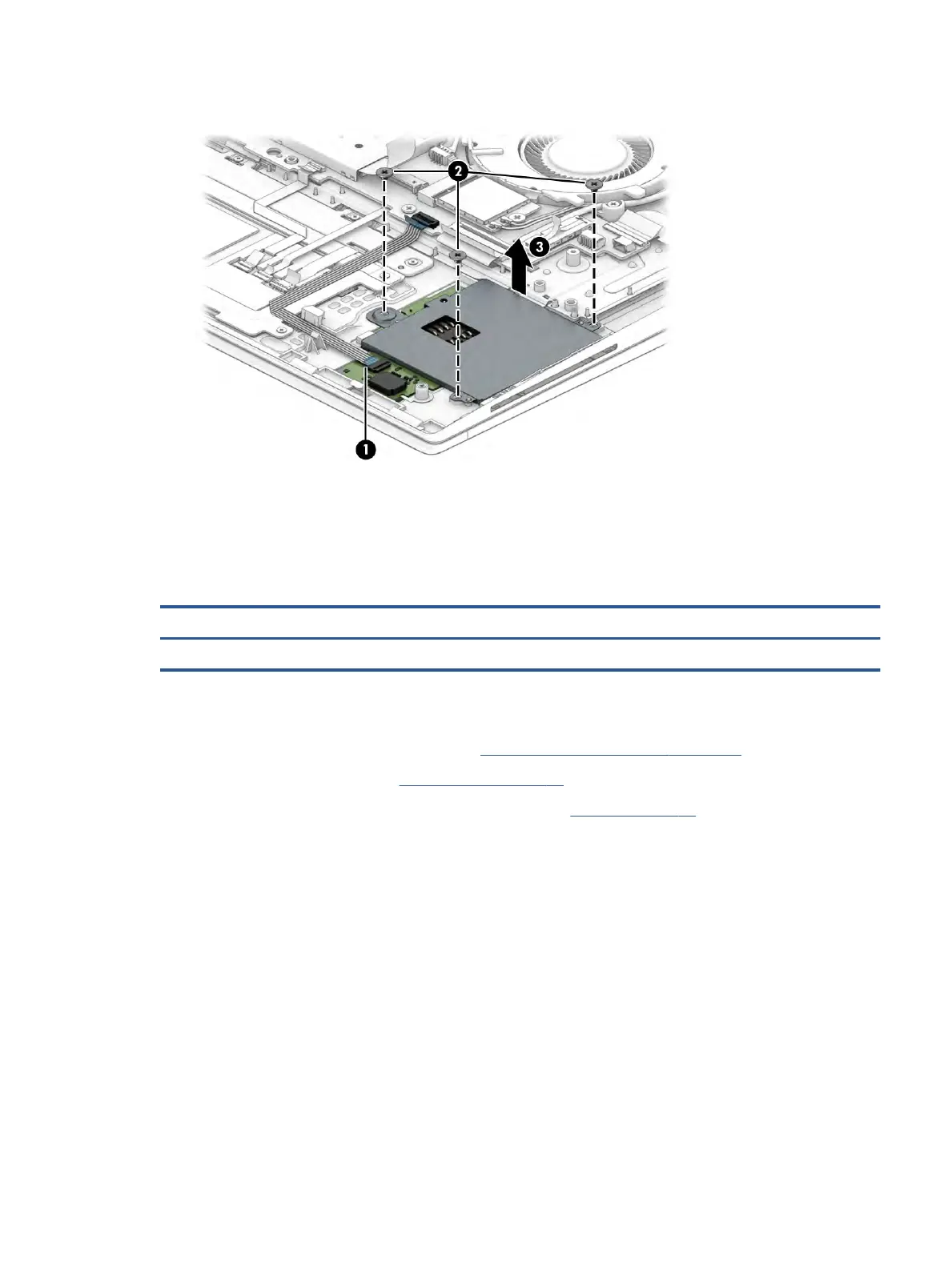

3. Remove the board from the computer (3).
Reverse this procedure to install the card reader board.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 6-5 Power connector cable description and part number
Description Spare part number
Power connector cable M15626-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 42).
Remove the power connector cable:
1. Disconnect the cable from the system board (1), and then remove the cable from the clip.
2. Remove the Phillips M2.0 × 4.0 screw (2) that secures the power connector cable to the computer.
Component replacement procedures 47
