3. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the heat

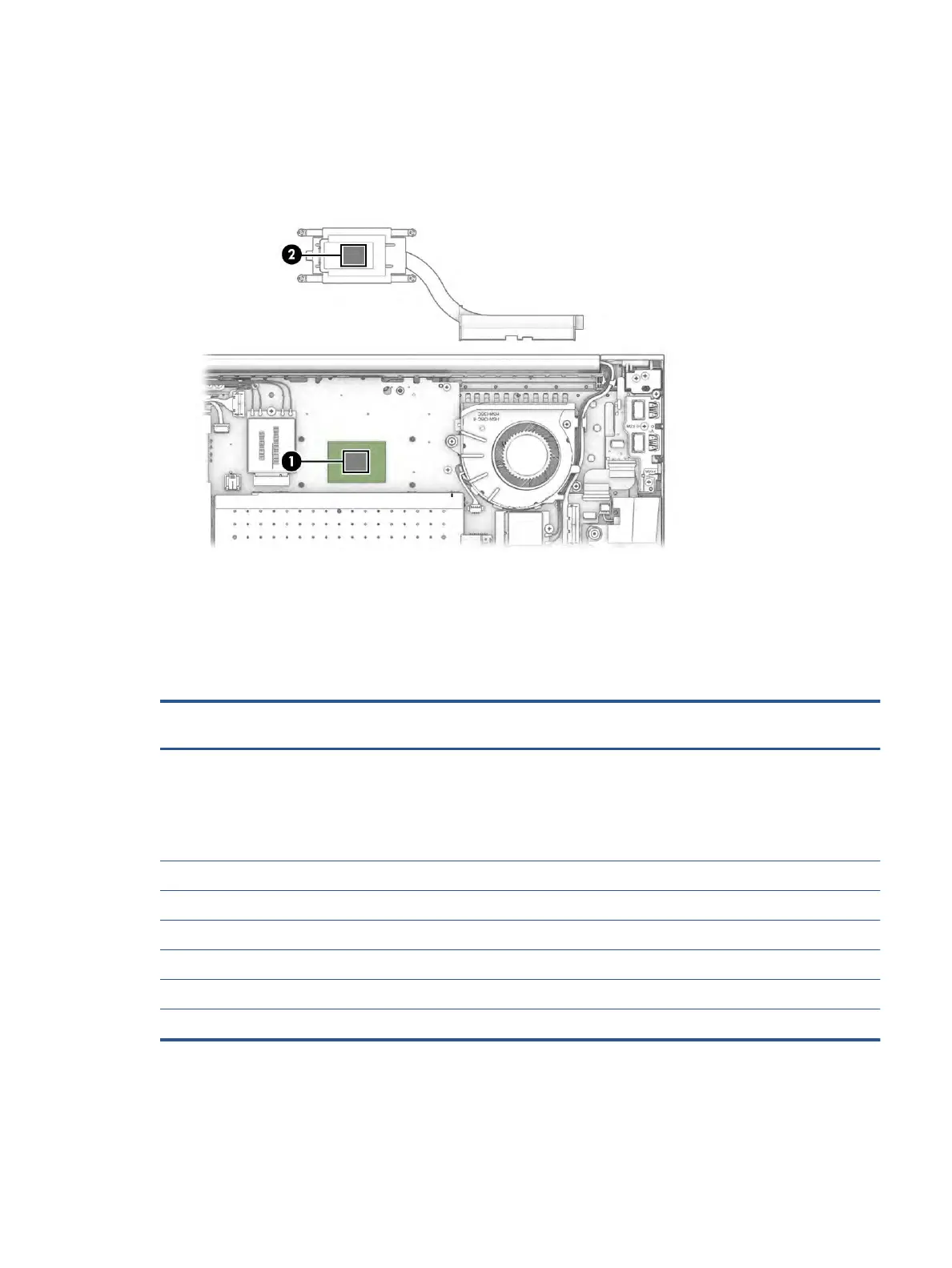

sink and system board spare part kits. The following illustration shows the replacement thermal
material locations.
Thermal paste is used on the system board component (1) and on the heat sink area (2) that services it.
Reverse this procedure to install the heat sink.
System board
To remove the system board, use these procedures and illustrations.
Table 6-12 System board descriptions and part numbers
Description Spare part
number
System board (includes processor):
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating system
xxxxxx-601: Windows 10 operating system
System board with integrated AMD Ryzen 7 PRO 5850U processor M53483-xx1
System board with integrated AMD Ryzen 7 5800U processor M53480-xx1
System board with integrated AMD Ryzen 5 PRO 5650U processor M53482-xx1
System board with integrated AMD Ryzen 5 5600U processor M53479-xx1
System board with integrated AMD Ryzen 3 PRO 5450U processor M53481-xx1
System board with integrated AMD Ryzen 3 5400U processor M53478-xx1
Before removing the system board, follow these steps:
Component replacement procedures 55
