1. Prepare the computer for disassembly (see Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 42).

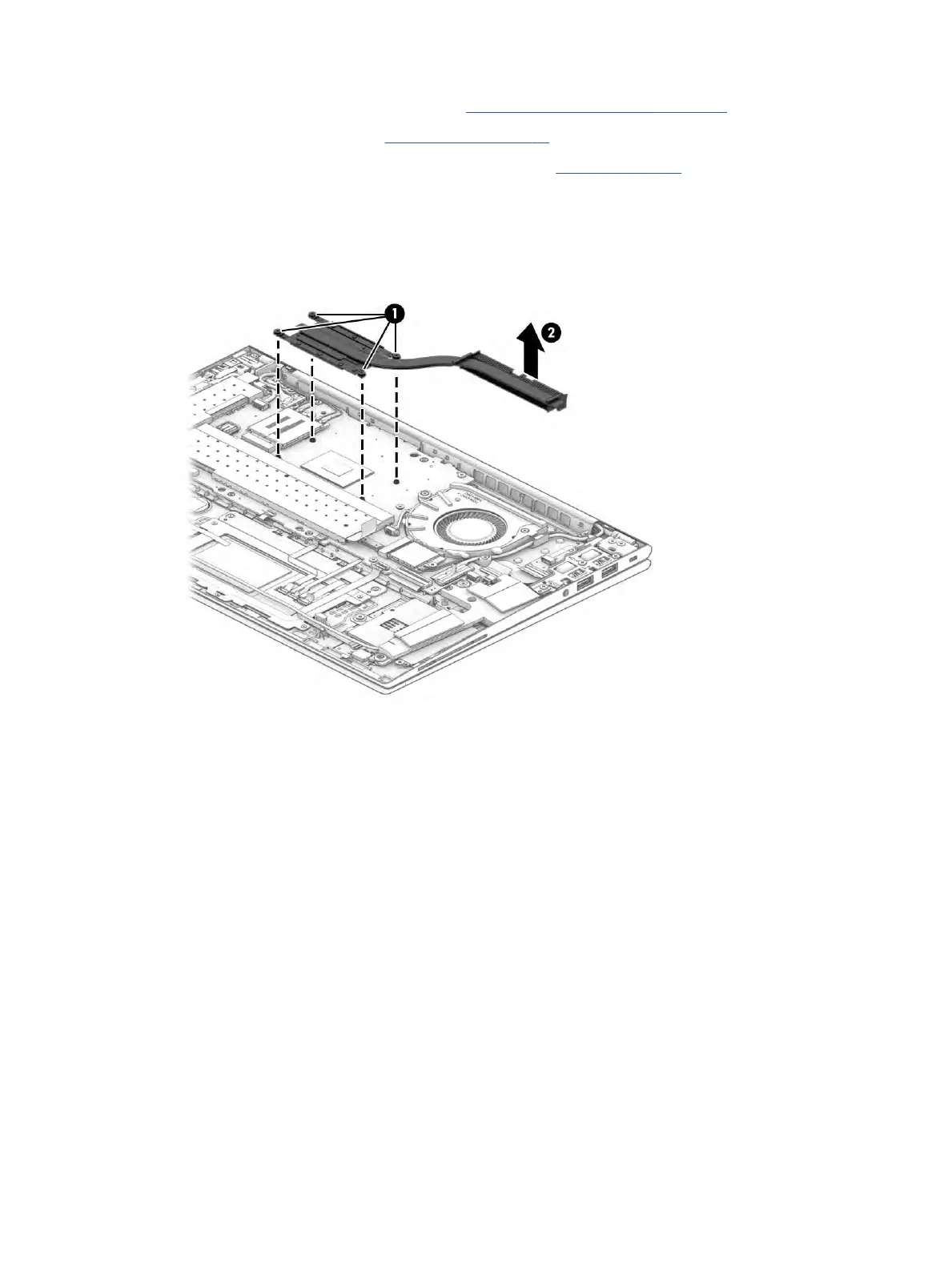

Remove the heat sink:
1. In the order indicated on the heat sink, loosen the four captive Phillips screws (1) that secure the heat
sink to the computer.
2. Remove the heat sink from the computer (2).
54 Chapter 6 Removal and replacement procedures for authorized service provider parts
