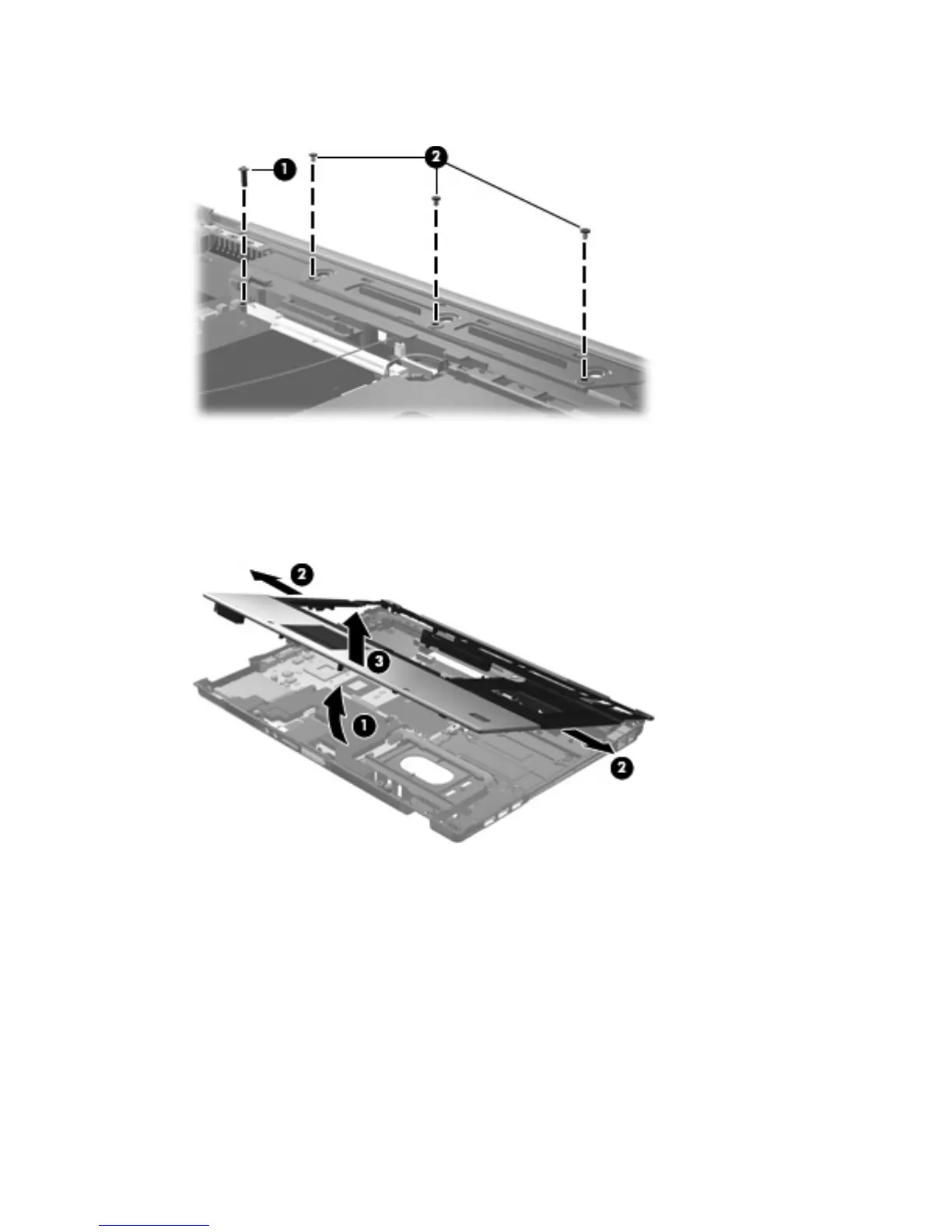

6. Remove the one Torx T8M2.5×9.0 screw (1) and the three PM2.5×4.0 screws (2) that secure the
top cover to the computer.
7. Lift the front edge of the top cover (1) until it rests at an angle.
8. Lift the left and right edges of the top cover outward and then up (2) up until it disengages from the
base enclosure.
9. Remove the top cover (3).
Reverse this procedure to install the top cover.
80 Chapter 4 Removal and replacement procedures
