HP EliteBook 8730w - Page 97

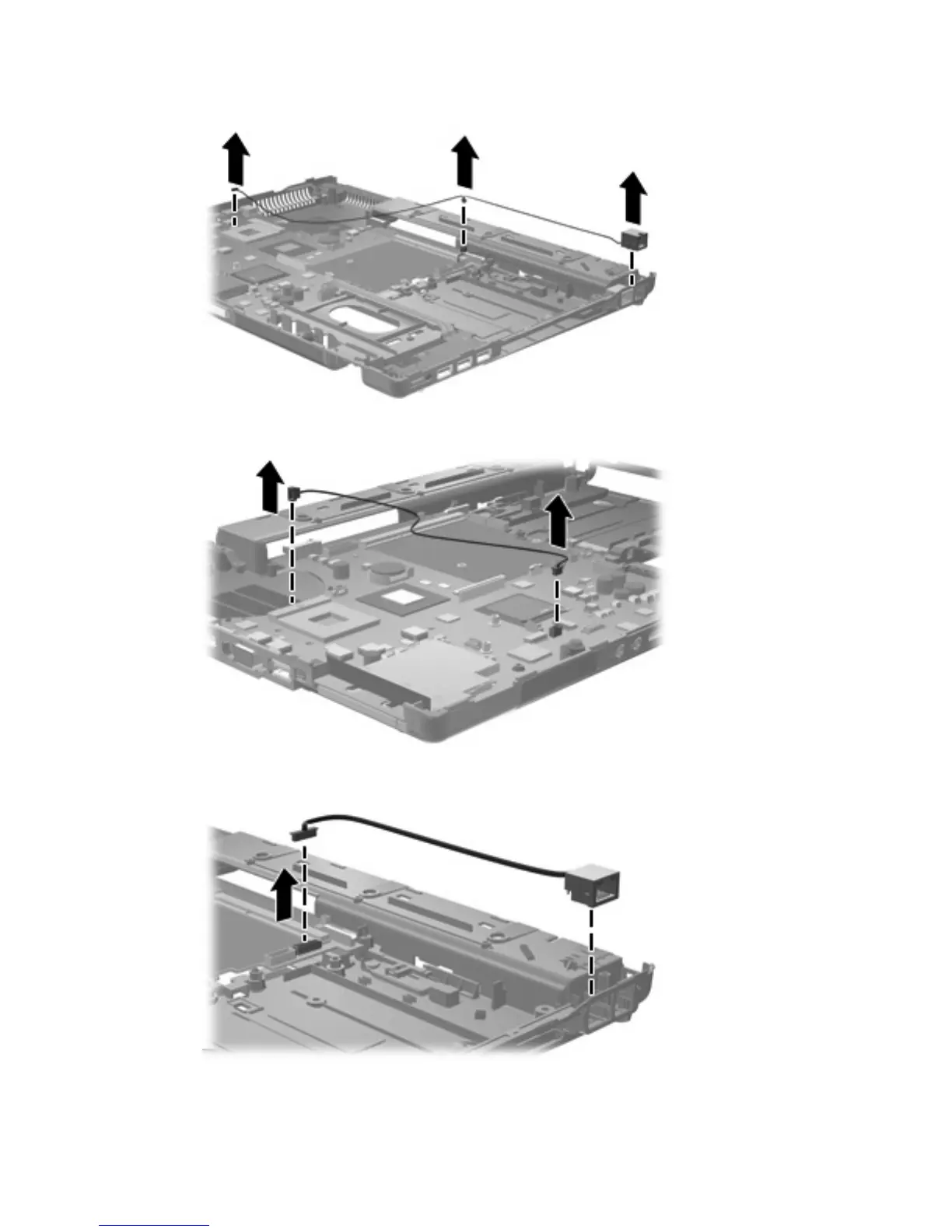

3. Disconnect the modem cable from the system board:
4. Disconnect the microphone cable from the system board.
5. Disconnect the RJ-11 cable from the system board and remove the jack from the base enclosure.
6. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an
angle.
Component replacement procedures 87
