Component Description
NOTE: Windows 7: Select Start > Help and Support > User
Guides.
Windows 8.1:
From the Start screen, type support, and then select the HP
Support Assistant app.
‒ or –
From the Windows desktop, click the question mark icon in the
notication area, at the far right of the taskbar.
Windows 10:
Select Start, select All apps, select HP Help and Support, and
then select HP Documentation.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
Be sure that the device cable has a 4-conductor connector that
supports both audio-out (headphone) and audio-in
(microphone).
(6) Smart card reader Supports optional Smart cards.

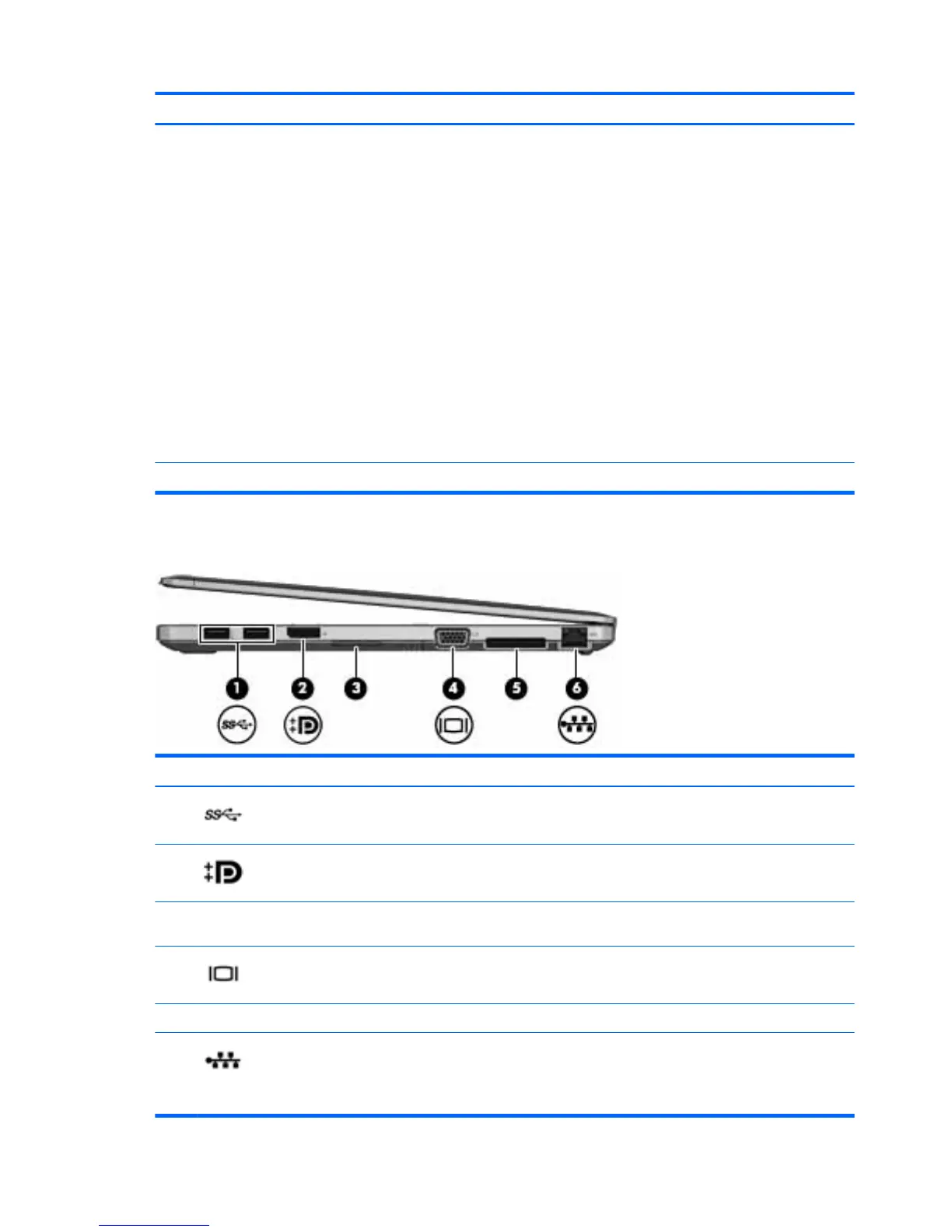

Right
Component Description
(1) USB 3.0 ports (2) Each USB 3.0 port connects an optional USB device, such as a
keyboard, mouse, external drive, printer, scanner or USB hub.
(2) DisplayPort Connects an optional digital display device, such as a high-
performance monitor or projector.
(3) Memory card reader Reads optional memory cards that store, manage, share, or
access information.
(4) External monitor port Connects an external VGA monitor or projector.
(5) Docking connector Connects an optional docking device.
(6) RJ-45 (network) jack/lights Connects a network cable.
●
Green (right): The network is connected.
●
Amber (left): The network is showing activity.
12 Chapter 2 External component identication
