mSATA drive
Description Spare part number
120-GB drive, M.2 769712-001
32-GB drive, M.2 769711-001
Before removing the mSATA drive follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see Battery on page 29).
5. Remove the hard drive cover (see Hard drive cover on page 32).
Remove the mSATA drive:

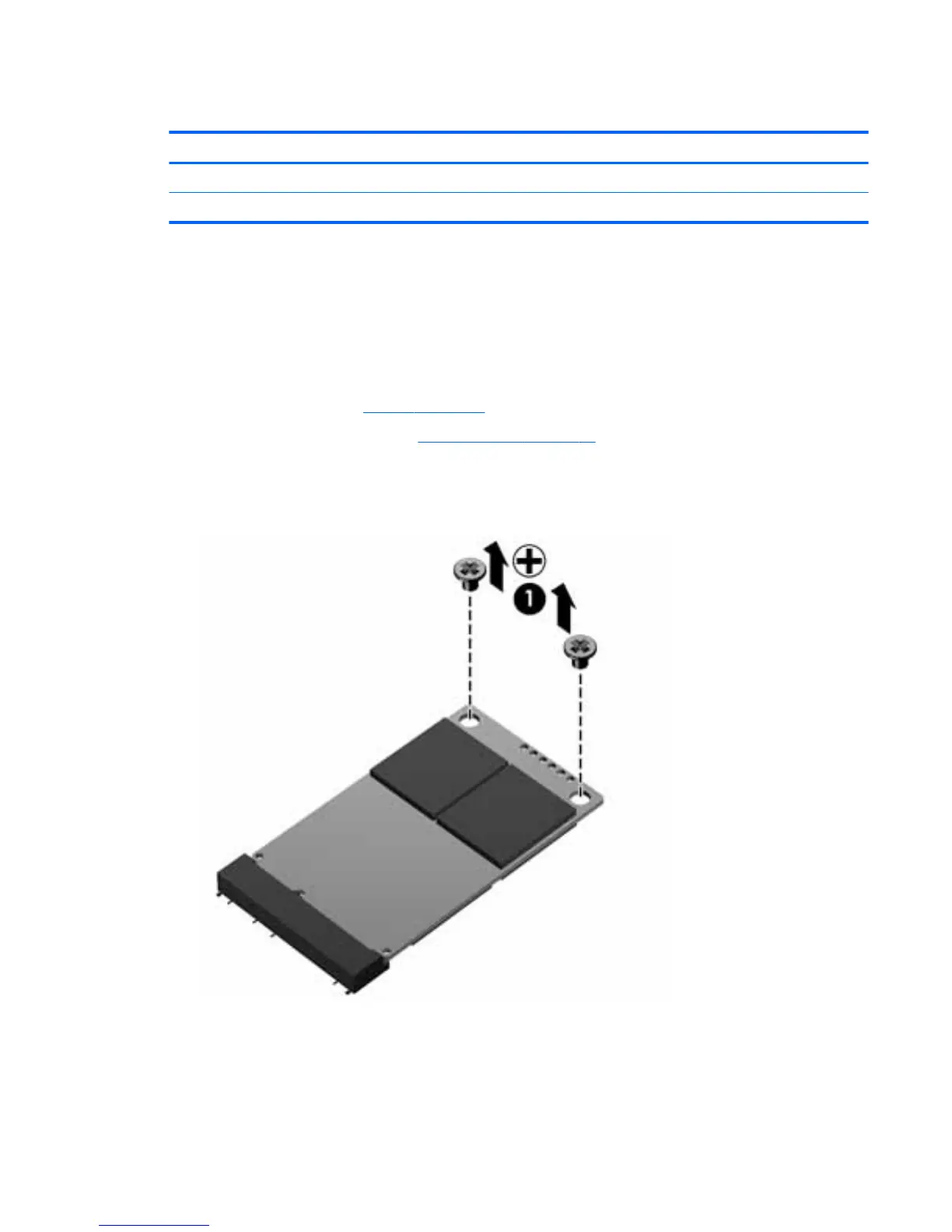

1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the drive to the system board. (The drive tilts
up.)
Component replacement procedures 35
