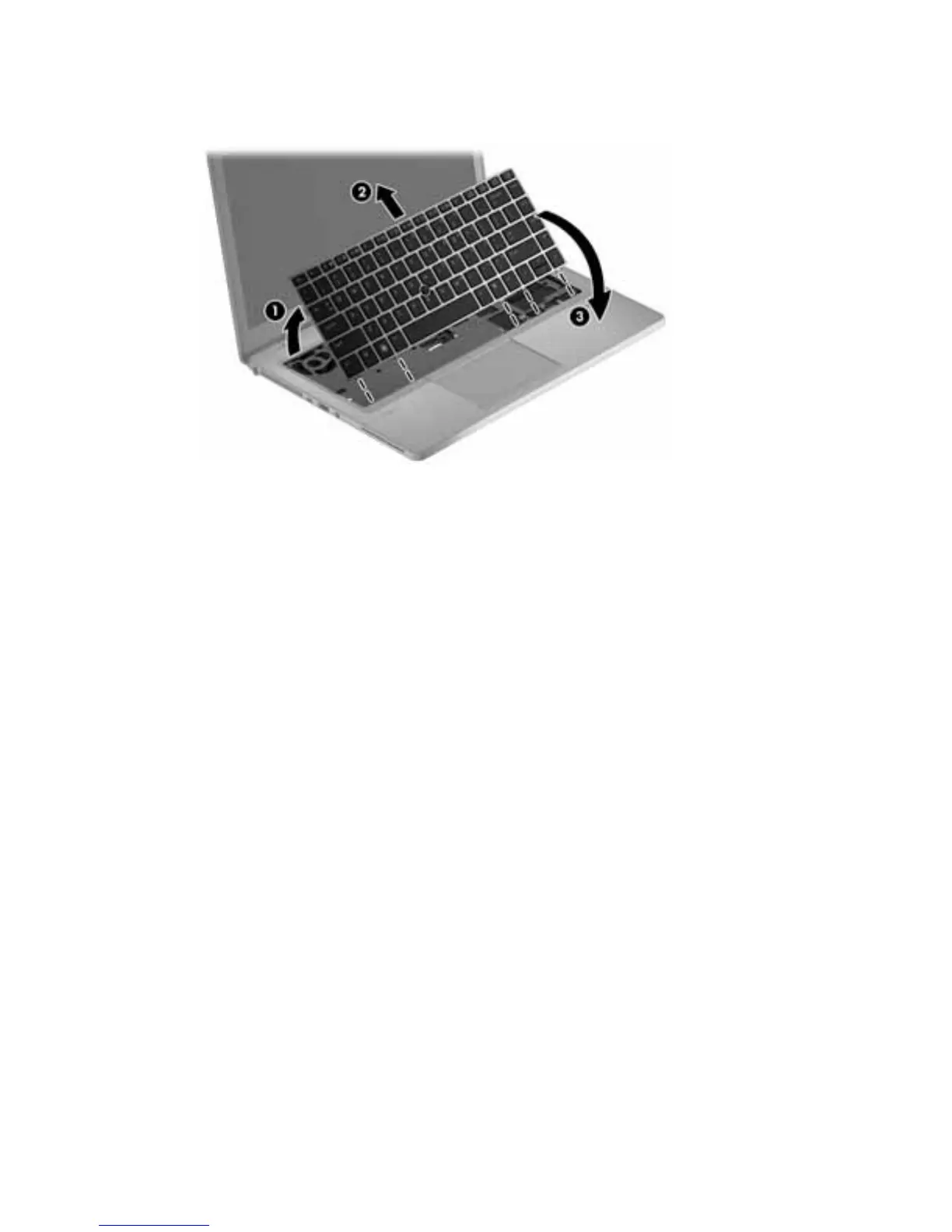

6. Lift the rear edge of the keyboard (1), and then swing the keyboard up and forward (2) until it rests
upside down on the palm rest (3).
7. Release and disconnect the following connectors and cables:
●
Release the pointing stick connector (1) and remove the cable (2).
●
Release the large keyboard connector (3) and remove the cable (4).
●
Release the small keyboard connector (5) and remove the cable (6).
Component replacement procedures 47
