2. Remove the heat sink (2).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the
system board components each time the heat sink is removed. Replacement thermal material is
included with the heat sink, processor, and system board spare part kits.

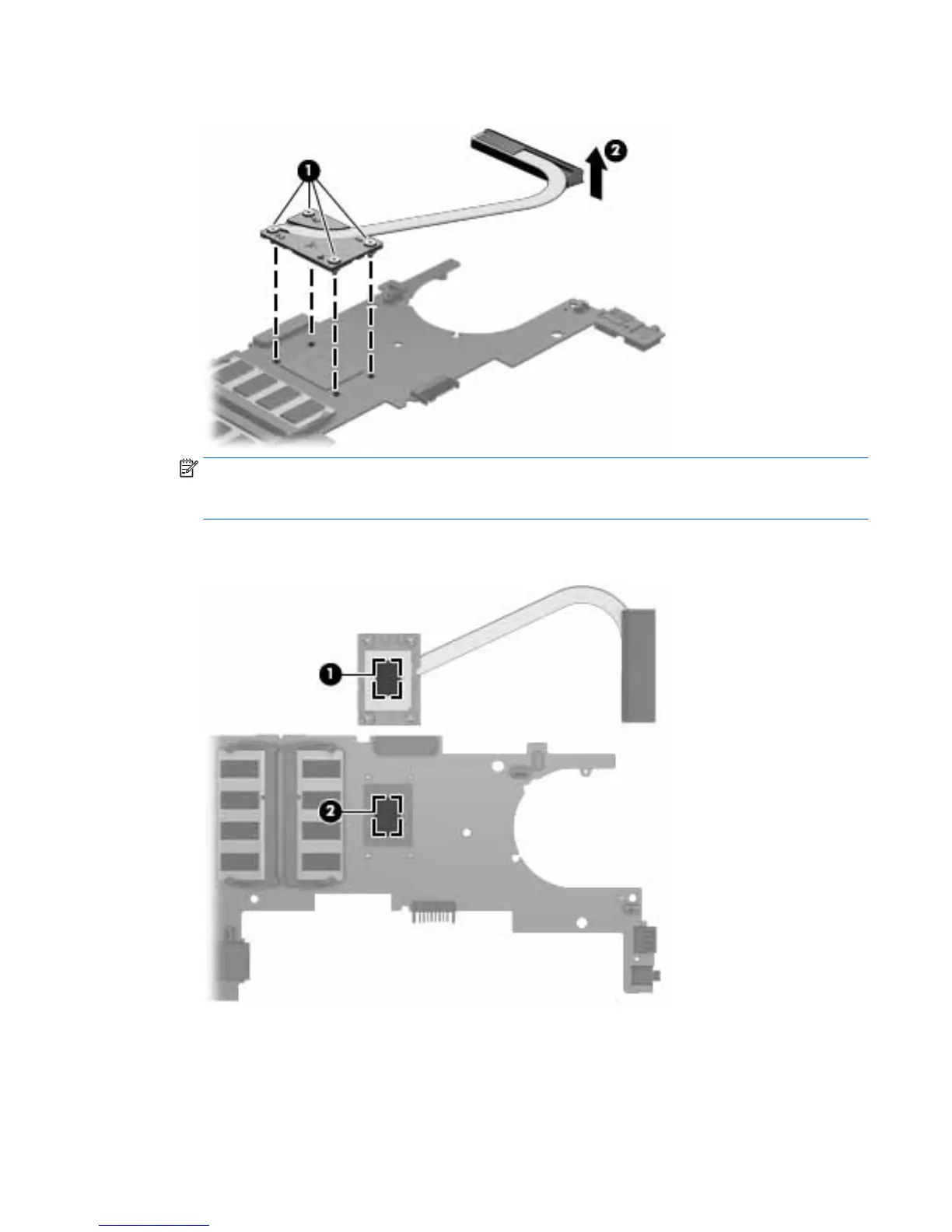

The following illustration shows the replacement thermal material locations. Thermal paste is used on
the heat sink (1) and the processor (2).
Reverse this procedure to install the heat sink.
Component replacement procedures 63
