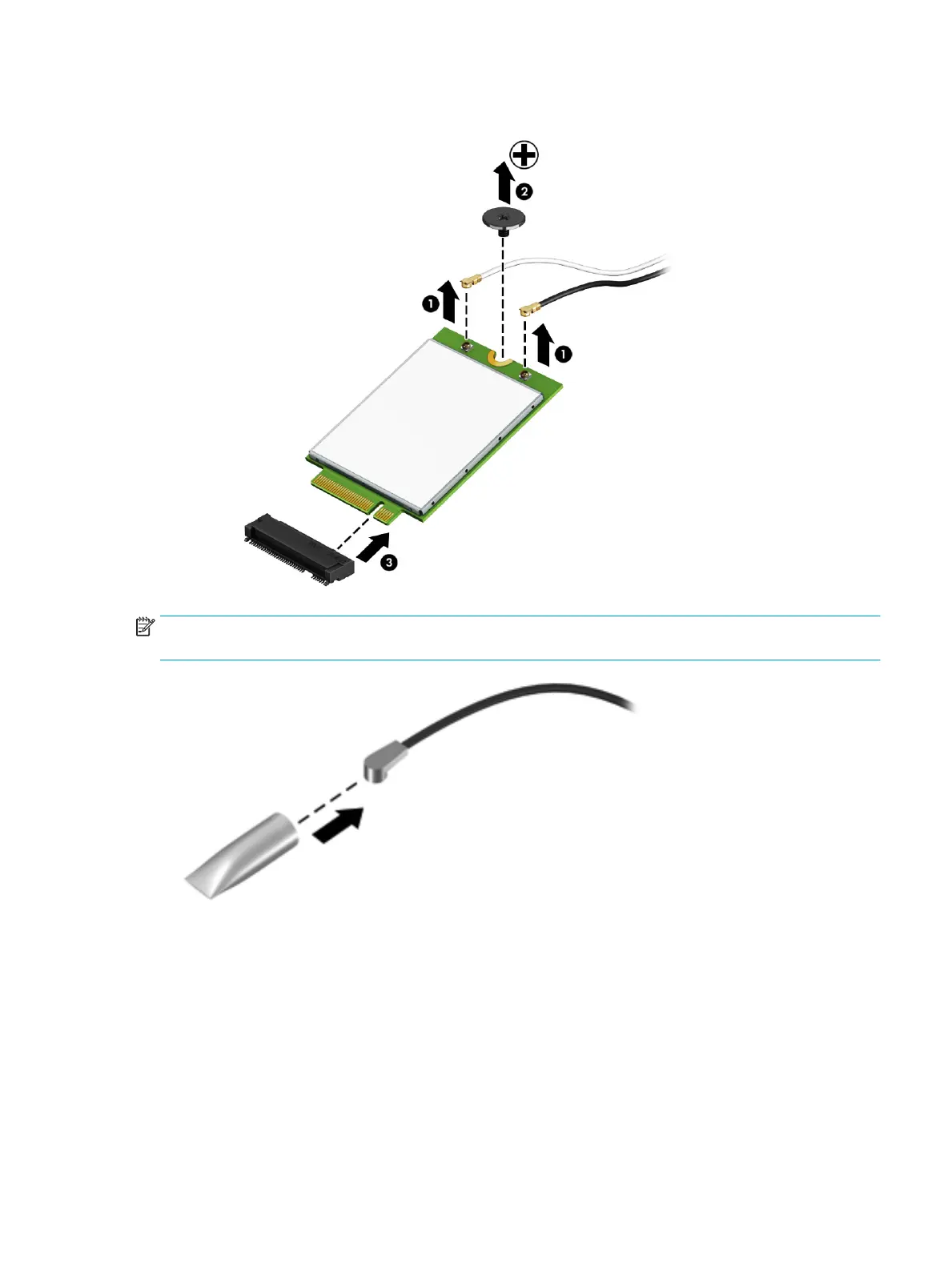

3. Remove the WWAN module (3) by pulling the board away from the slot at an angle.
NOTE: If the WWAN antenna is not connected to the terminal on the WWAN module, you must install a
protective sleeve on the antenna connector, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Component replacement procedures 35
