Speaker assembly
Table 5-7 Speaker assembly description and part number
Description Spare part number
Speaker assembly L83078-001
Before removing the speaker assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).
4. Remove the touchpad (see Touchpad on page 37).

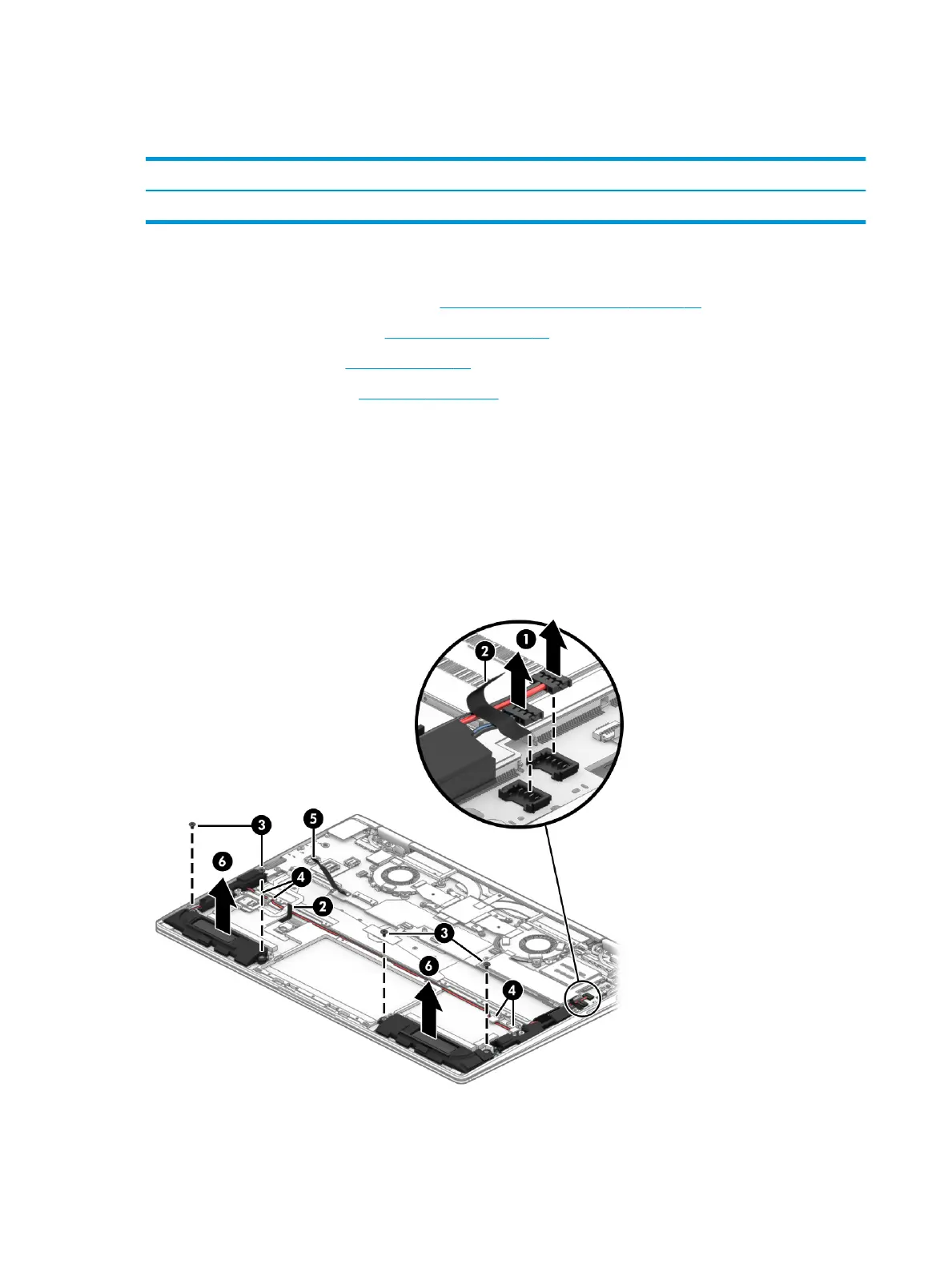

Remove the speaker assembly:
1. Disconnect the speaker cables from the system board (1), and then remove the tape that secures the
cables to the computer (2).
2. Remove the four Phillips M2.0 × 3.0 screws that secure the speakers (3).
3. Remove the speaker cable from the clips built into the chassis (4).
4. Disconnect the NFC cable so that you can remove the speaker cables (5).
5. Remove the speakers from the computer (6).
Reverse this procedure to install the speaker.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
