Touchpad
Table 5-6 Touchpad description and part number
Description Spare part number
Touchpad for use in models without NFC (includes bracket) L70774-001
Touchpad for use in models with NFC module (includes bracket) L70775-001
Touchpad cable (available in the Cable Kit) L70755-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).

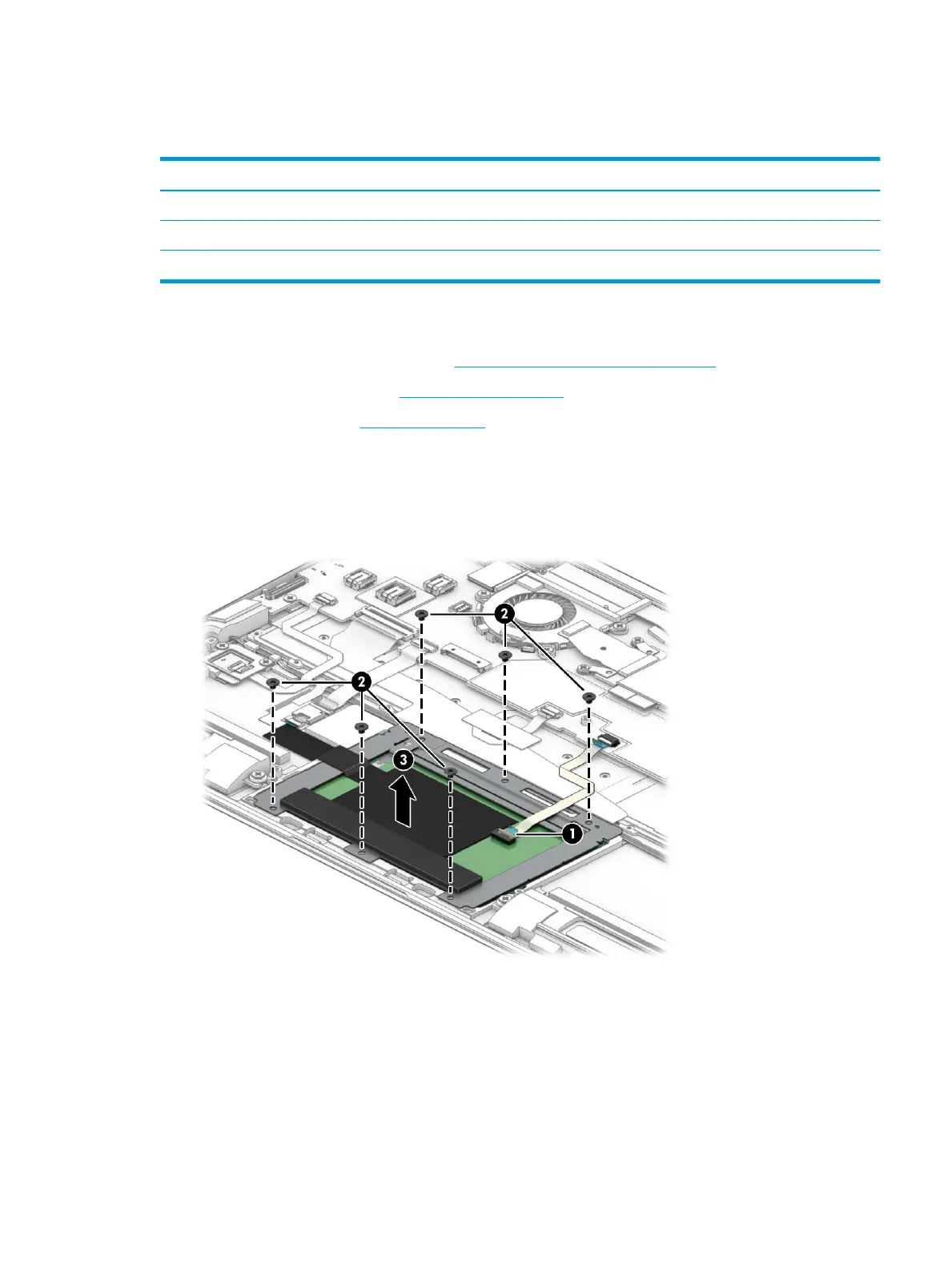

Remove the touchpad:
1. Disconnect the touchpad cable from the touchpad ZIF connector (1).
2. Remove the six Phillips M2.0 × 2.0 screws (2) that secure the touchpad to the computer, and then
remove the touchpad from the computer (3).
Reverse the removal procedures to install the touchpad.
