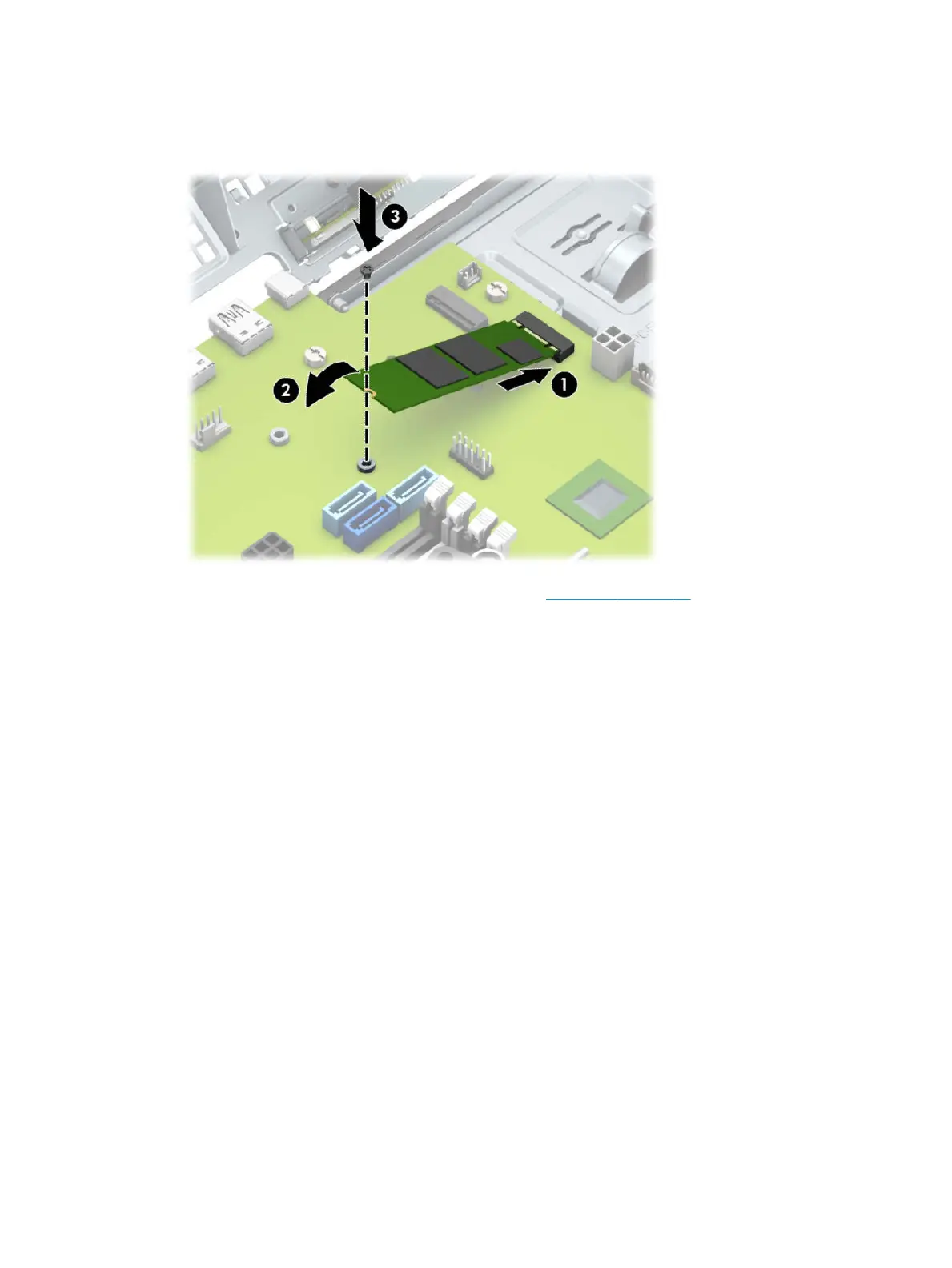

6. To install an M.2 SSD card, slide the pins on the card into the system board connector while holding the
card at approximately a 30° angle (1). Press the other end of the card down (2), and then secure the card
with the screw (3).
7. Rotate the drive cage back down to its normal position (Drive cage on page 41).
8. Reassemble the computer.
