HP EliteDesk 800 G5 SFF User Manual

Card reader
The card reader is secured to the front of the computer behind the bezel.
1. Prepare the computer for disassembly (Preparation for disassembly on page 18).
2. Remove the access panel (Access panel on page 19).
3. Remove the front bezel (Front bezel on page 20).

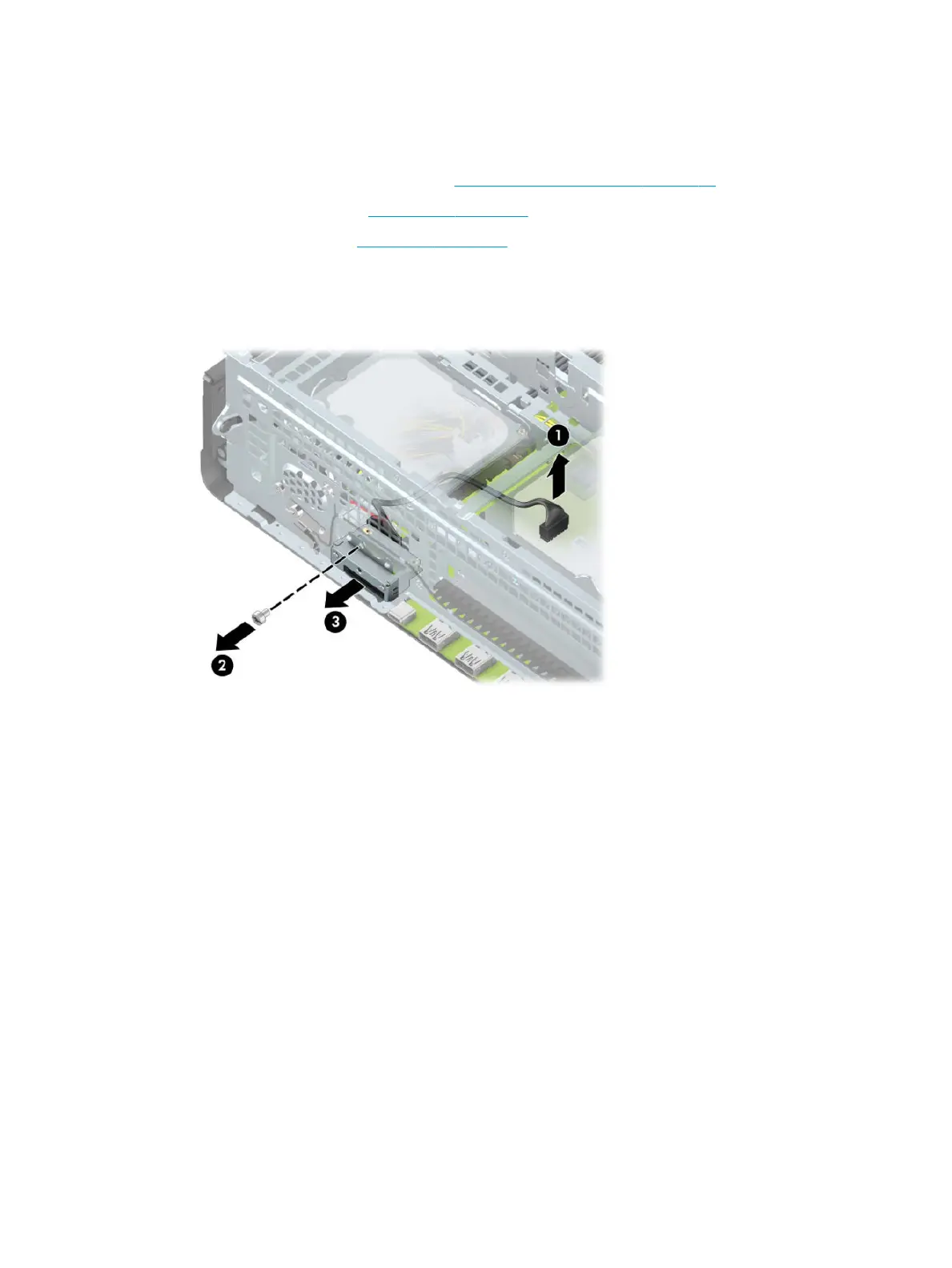

4. Disconnect the cable from the system board connector (1).
5. Remove the screw that secures the card reader to the front of the computer (2), and then remove the
card reader from the computer (3).
To install the card reader, reverse the removal procedure.
Card reader 49

HP EliteDesk 800 G5 SFF Specifications

General

Chipset	Intel Q370
Form Factor	Small form factor
Processor Options	Intel Core i3/i5/i7
Memory	Up to 128 GB DDR4-2666 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel UHD Graphics 630
Ports	Varies by configuration
Ports (Front)	1 headphone/microphone combo, 2 USB 3.1 Gen 1, 1 USB 3.1 Gen 2 Type-C
Ports (Rear)	4 USB 3.1 Gen 1
Expansion Slots	1x PCIe x16, 1x PCIe x1, 2 M.2
Power Supply	180W, up to 92% efficient, active PFC
Operating System	Windows 10 Pro
Networking	Intel I219-LM Gigabit Network Connection
Weight	Starting at 5.0 kg (11.02 lb)
