HP EliteOne 800 G2 User Manual

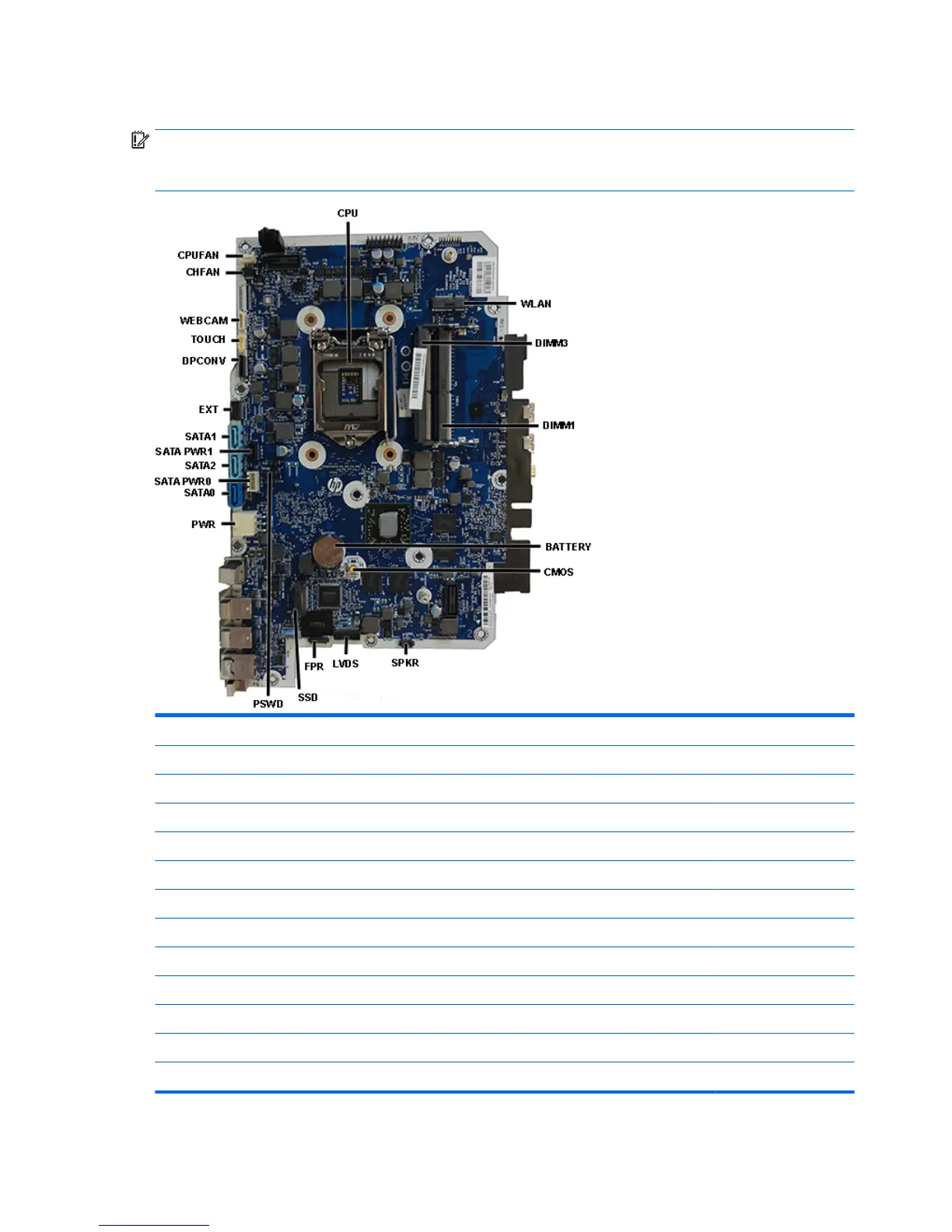

System board callouts, HP EliteOne 800 G2 dGPU models
IMPORTANT: The LVDS connector is in a dierent location on the system board of EliteOne 800 dGPU
models and EliteOne 800 UMA models. Additionally, each model has a unique LVDS cable. The cables are not
interchangeable between dGPU (discrete) and UMA models.
Sys Bd Label Color Component Sys Bd Label Color Component
CPU Black Processor socket SATA0 Dark blue Hard drive
WLAN Black WLAN module SATAPWR0 White Hard drive power
DIMM3 Black Memory module SATA2 Black Optical drive
DIMM1 Black Memory module SATAPWR1 Black Optical drive power
BATTERY Black RTC battery SATA1 White Second hard drive
CMOS Yellow Reset CMOS EXT Black PS2/serial board
SPKR Black Speaker DPCONV Black Converter board
LVDS Black Display connector TOUCH White Touch screen
FPR Black Fingerprint reader WEBCAM Black Webcam connector
SSD Black M.2 SSD drive CHFAN Black Fan connector
PSWD Green Clear system passwords CPUFAN White Fan connector
PWR White Main power
68 Chapter 4 Removal and Replacement Procedures

HP EliteOne 800 G2 Specifications

General

Screen shape	Flat
Display diagonal	23 \
Touch technology	Multi-touch
Native aspect ratio	16:9
Detachable display	No
Intel segment tagging	Enterprise
Storage drive interface	Serial ATA
Tcase	71 °C
Bus type	DMI3
Stepping	R0
Processor code	SR2BX
Processor cache	6 MB
Processor cores	4
Processor model	i5-6500
System bus rate	8 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6500 Desktop series
Processor socket	LGA 1151 (Socket H4)
Processor codename	Skylake
Processor frequency	3.2 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	2133, 1333, 1600, 1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
SSD interface	SATA
Storage media	SSD
Optical drive type	DVD Super Multi
Total storage capacity	256 GB
Compatible memory cards	Not supported
Number of storage drives installed	1
Memory slots	2
Internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 4 GB
On-board graphics card ID	1912
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 530
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
Product color	Silver
Country of origin	China
Product type	All-in-One PC
Motherboard chipset	Intel® Q170
Wi-Fi standards	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC adapter power	160 W
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Sustainability certificates	ENERGY STAR
Scalability	1S
Processor ARK ID	88184
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal solution specification	PCG 2015C
Intel Stable Image Platform Program (SIPP) version	1.00

Weight and Dimensions

Depth (with stand)	58.9 mm
Width (with stand)	567.1 mm
Height (with stand)	392.7 mm
Weight (with stand)	7340 g
