17. Disconnect the cables from the connectors located on the inside of the display panel, and then remove
the panel.
NOTE: Touch displays have multiple cables connected to them. Non-touch displays have one cable
connected.

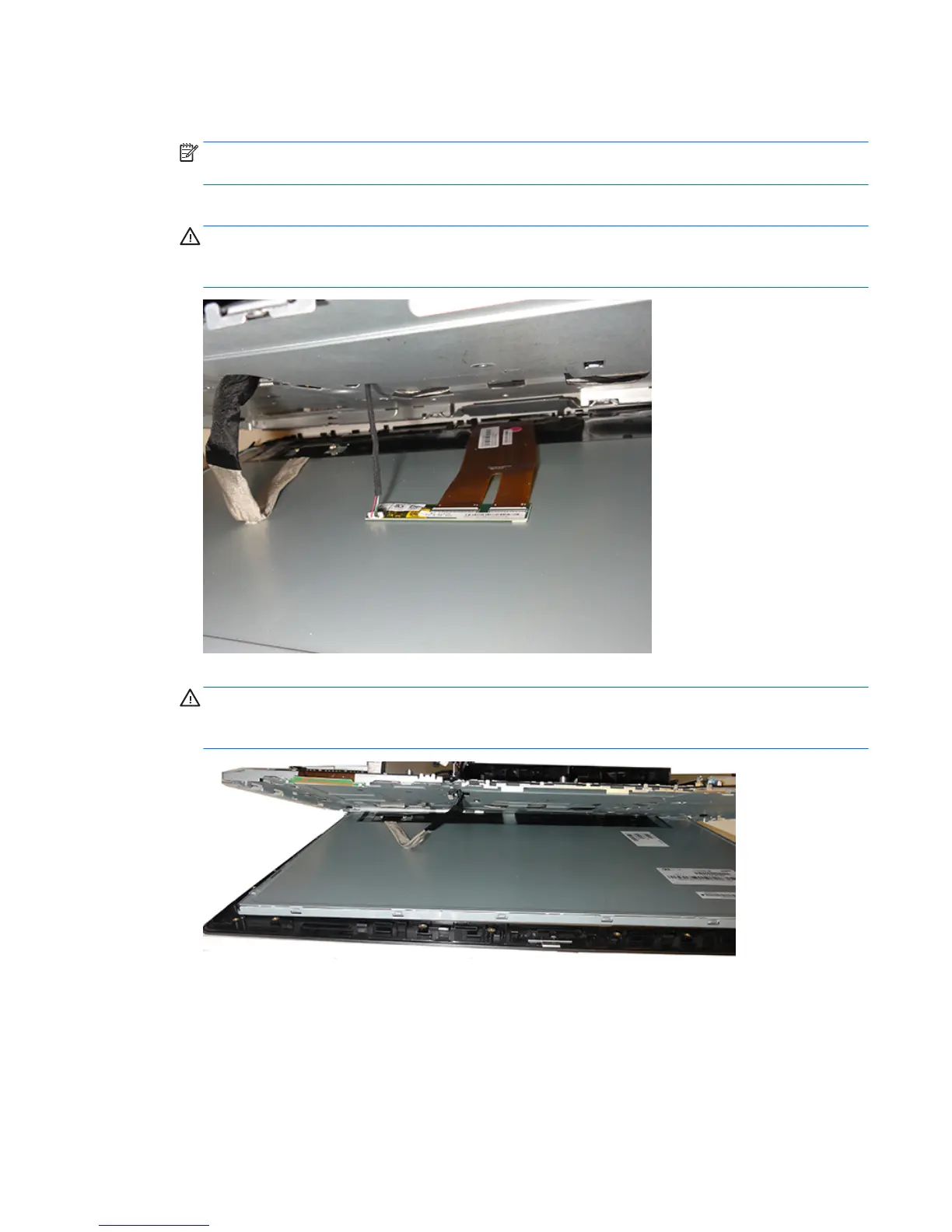

Touch panel:
CAUTION: When removing the display panel on touch displays, note the length of the LVDS cable and
the touch cable. The cables may be short, which could result in damage to the cables or connectors if the
cables are accidentally pulled loose from the connectors.
Non-touch panel:
CAUTION: When removing the display panel on non-touch displays, note the length of the LVDS cable.
The cable may be short, which could result in damage to the cable or connector if the cable is
accidentally pulled loose from the connector.
To install the display panel, reverse the removal procedures.
Display panel 87
