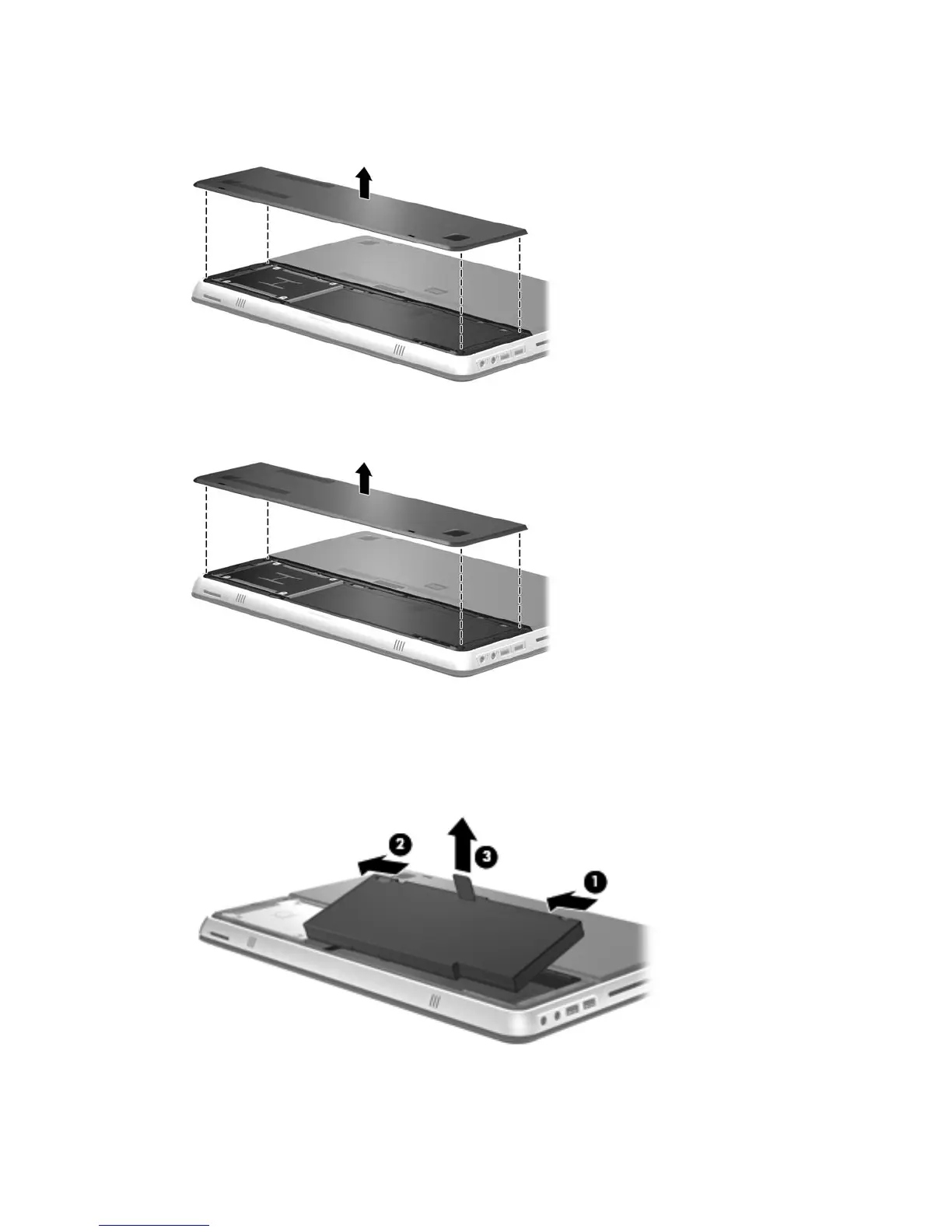

Remove the battery:
1. Slide the battery cover release latch (1). (The battery cover releases forward (2)).
2. Remove the battery cover. The battery cover is included in the Door Kit, spare part number
608384-001.
3. Slide the right battery release latch (1) to unlock the battery.
4. Slide and hold the left battery release latch (2) to release the battery.
5. Pull the battery tab (3), and then remove the battery from the computer.
38 Chapter 4 Removal and replacement procedures ENWW
