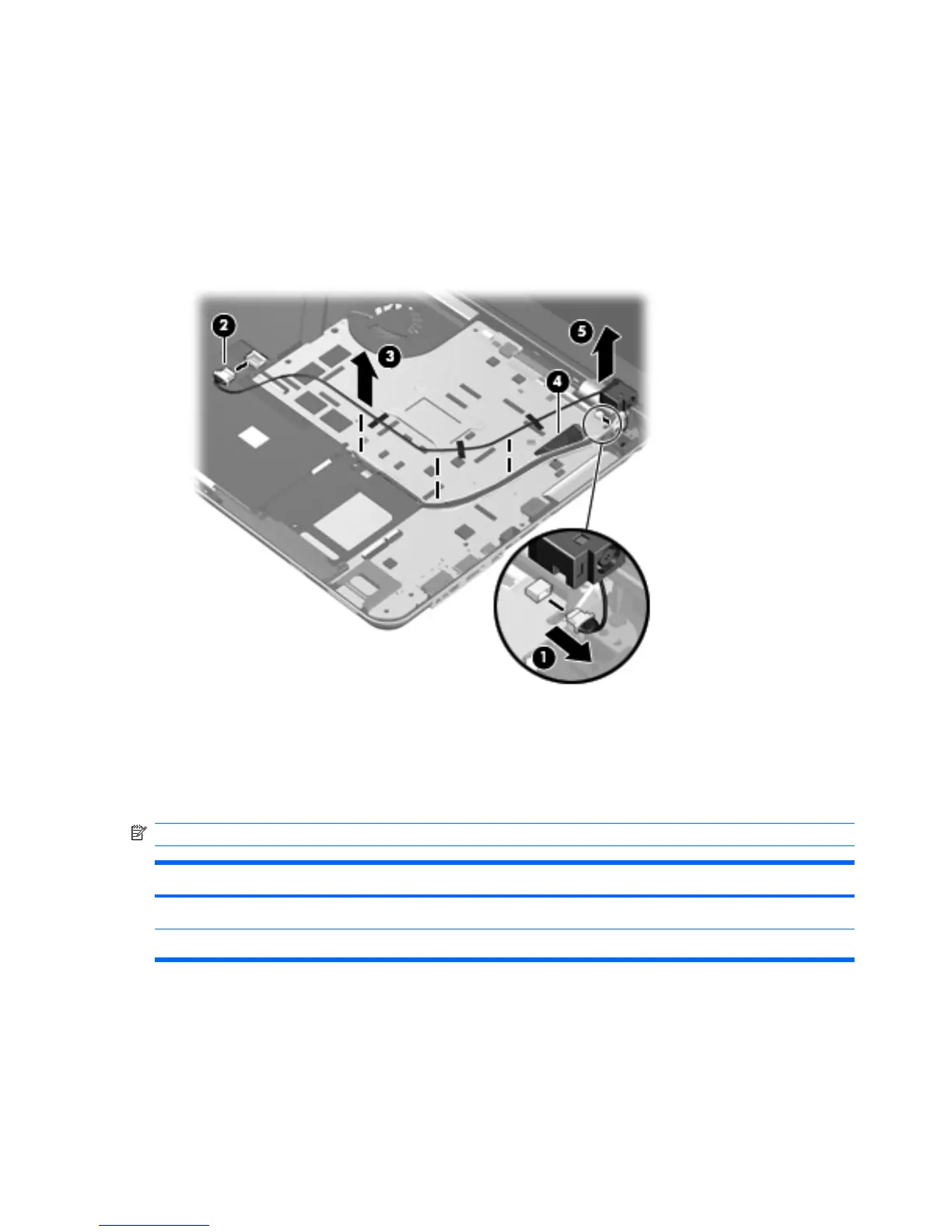

Remove the power connector cable:
1. Disconnect the power extension cable (1) from the battery connector board.
2. Release the power extension cord (2) from the system board. (The power extension cord is
attached to the system board with double-sided tape.)
3. Disconnect the power connector cable (3) from the system board.
4. Release the power connector (4) from the alignment clip built into the base enclosure.
5. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
System board
NOTE: The system board spare part kit includes replacement thermal material.
Description Spare part number
For use only on computer models equipped with an Intel Core i7 processor 608365-001
For use only on computer models equipped with an Intel Core i5, i3, or P6000 processor 608364-001
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
66 Chapter 4 Removal and replacement procedures ENWW
