Before removing the mass storage device, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery cover and battery (see
Battery on page 37).
Remove the mass storage device:

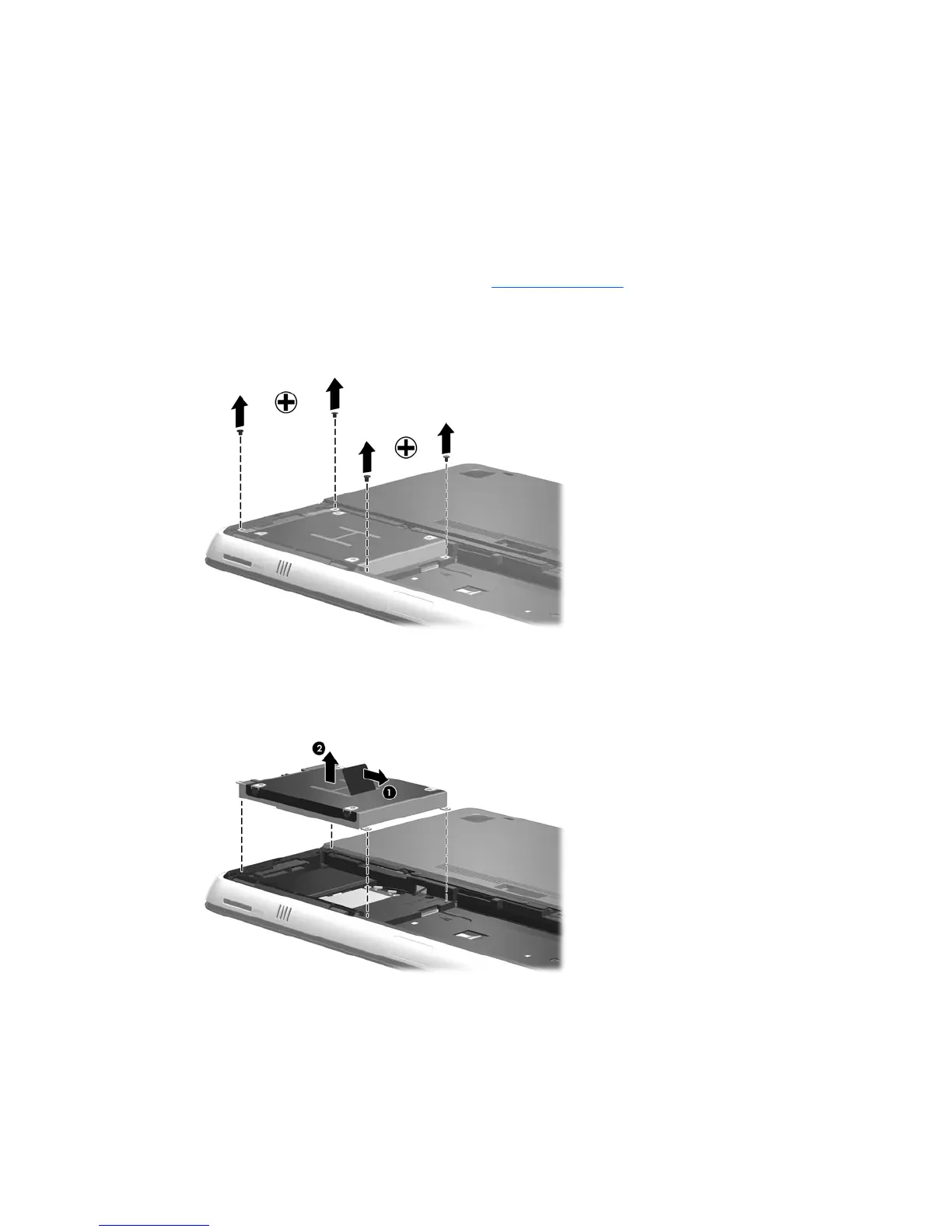

1. Remove the four Phillips PM2.0×3.0 screws that secure the mass storage device to the computer.
2. Use the Mylar tab (1) to slide the mass storage device to the right and disconnect it from the
system board.
3.
Lift the mass storage device (2) out of the mass storage device bay.
4. If it is necessary to replace the mass storage device bracket, remove the four Phillips PM3.0×3.0
screws (1) that secure the bracket to the mass storage device.
