3.

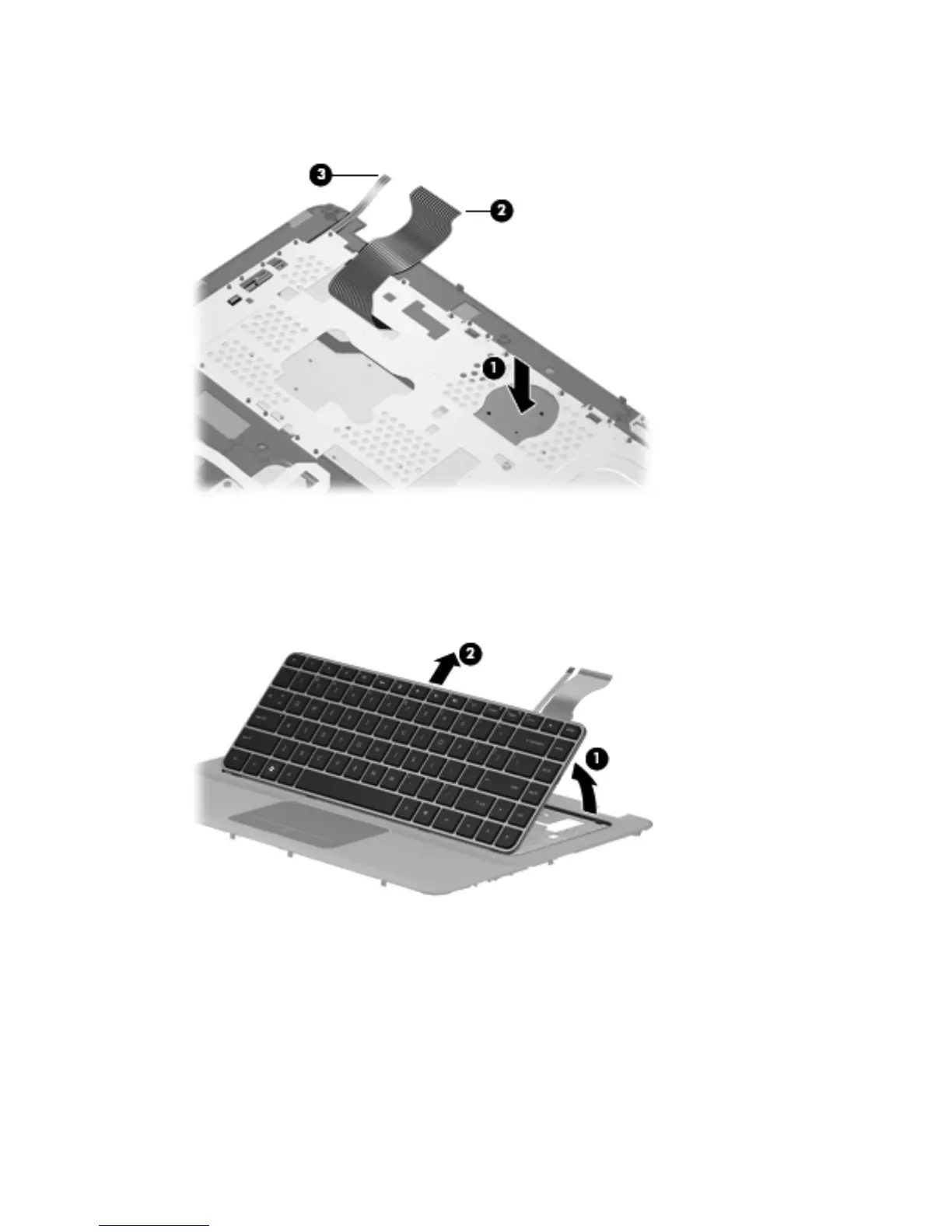

Release the keyboard light cable (2) and the keyboard cable (3) through their respective
openings in the top cover.
4. Turn the top cover and keyboard right-side up, with the front toward you.
5. Swing the rear edge of the keyboard (1) up and forward until it rests at an angle.
6. Slide the keyboard (2) back at an angle until the tabs on the front edge of keyboard disengage
from the slots in the top cover.
7. Remove the keyboard.
Reverse this procedure to install the keyboard.
58 Chapter 4 Removal and replacement procedures ENWW
